| ■ Technical Data |

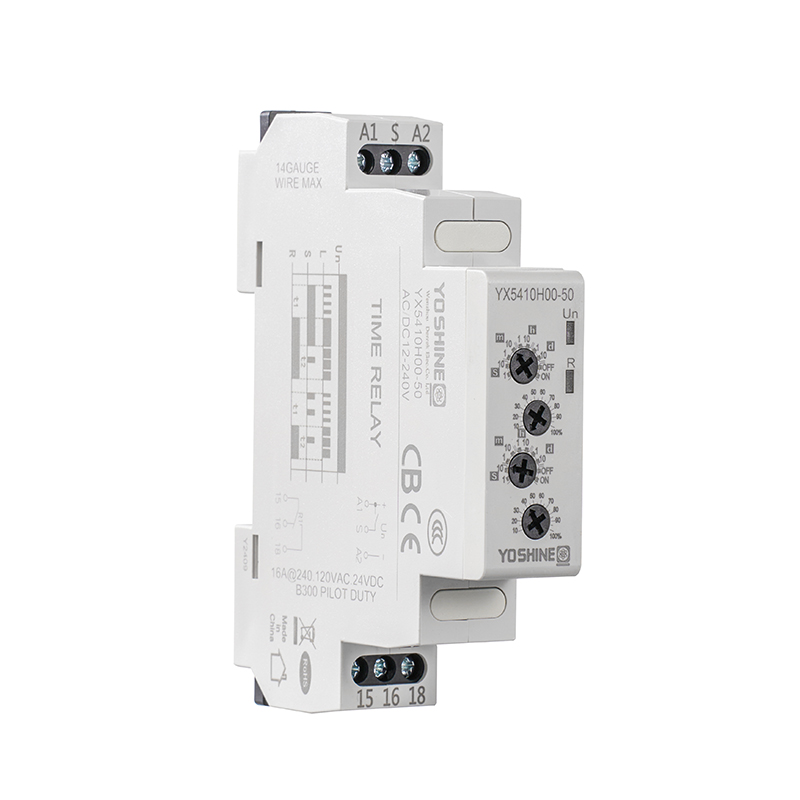

YX5410H00-50 | ||
| ■ Output Characteristics | SPDT On & Off delay | ■ Rated Current | 10A /16A |
| ■ Working Voltage |
Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC 12- 240V, AC/DC 24- 240V |
■ Time Range |
0.1S~10D |
| ■ Set tolerance | 10% | ■ Repeat accuracy | 2% |

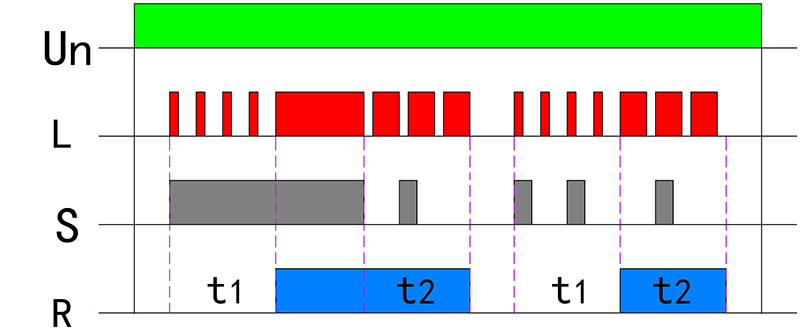

When the relay Un is powered on:
When the S control terminal is activated, a delay is initiated. After a delay time of t1, output contact R closes. When the S control terminal is deactivated, the relay delays for time t2 before R opens. If the S control terminal is deactivated before t1 is reached, R closes after time t1 and opens after time t2. This cycle repeats.
Mode Features:
● Triggered by both rising and falling edges of S.
● The delay cannot be reset.
● Can be triggered again to start.
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Dual Trigger Dual Time On/Off Delay Time Relay Supplier and Wholesale YOSHINE Dual Trigger Dual Time On/Off Delay Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
