| ■ Technical Data |
YX5221H00-00 | ||
| ■ Output Characteristics | DPDT Off Delay | ■ Rated Current | 10A /16A |
| ■ Working Voltage |
Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC 12- 240V, AC/DC 24- 240V |
■ Time Range |
0.1S~10D |
| ■ Set tolerance | 10% | ■ Repeat accuracy | 2% |

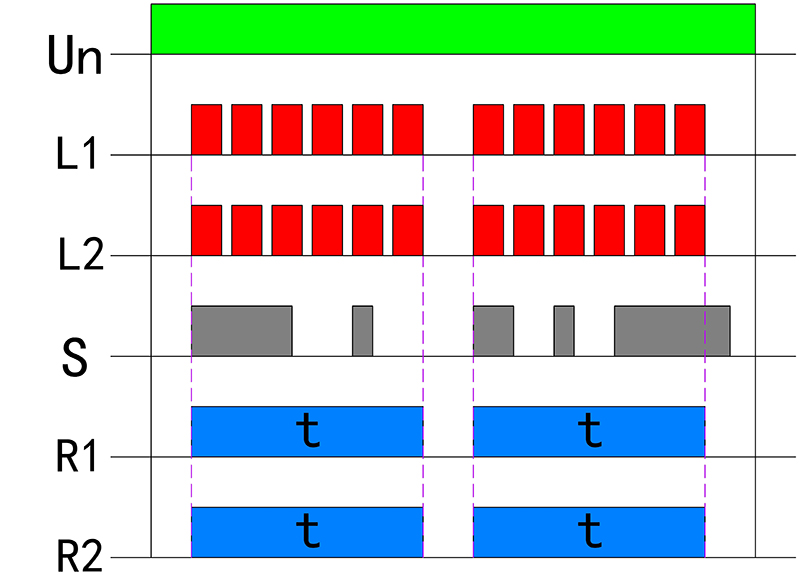

When relay Un is powered on: When the S control terminal is connected, output contacts R1 and R2 close and the delay starts. After the delay time t, R1 and R2 open. During the delay time t, reconnecting the S control terminal is ineffective, and the delay time t remains unchanged until it ends, at which point R1 and R2 open. The above actions repeat.
Mode Features:
● Rising edge of S triggers delay.
● Delay cannot be reset.
● Can be triggered again to start.
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Single Trigger Single Time Off Delay Time Relay Supplier and Wholesale YOSHINE Single Trigger Single Time Off Delay Time Relay Company. YOSHINE's products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client's requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
