| ■ Technical Data |

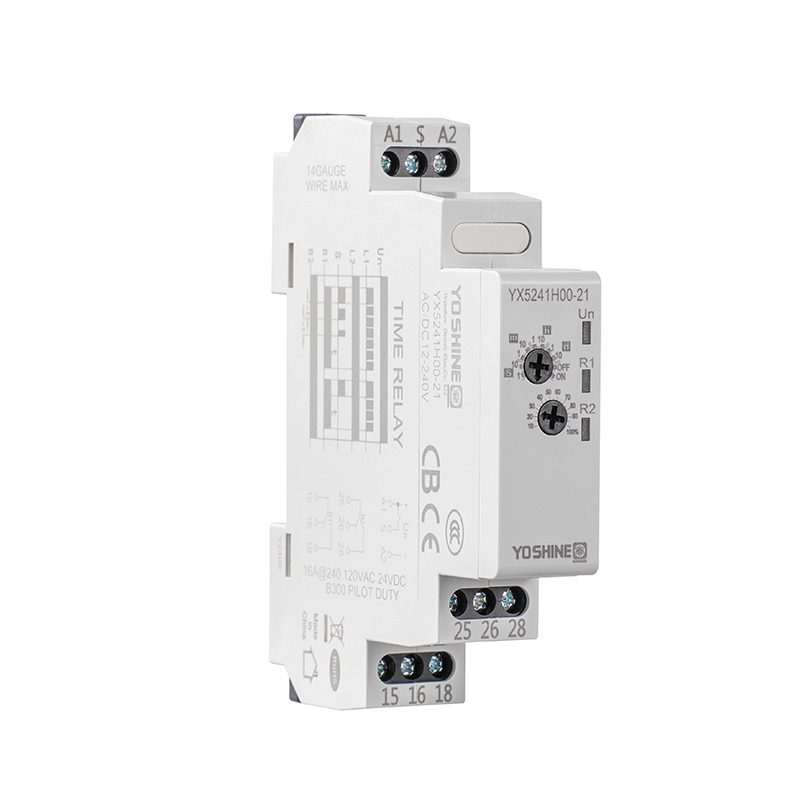

YX5241H00-21 | ||
| ■ Output Characteristics | DPDT One Inst, One Delay | ■ Rated Current | 10A /16A |
| ■ Working Voltage |
Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC 12- 240V, AC/DC 24- 240V |
■ Time Range |
0.1S~10D |
| ■ Set tolerance | 10% | ■ Repeat accuracy | 2% |

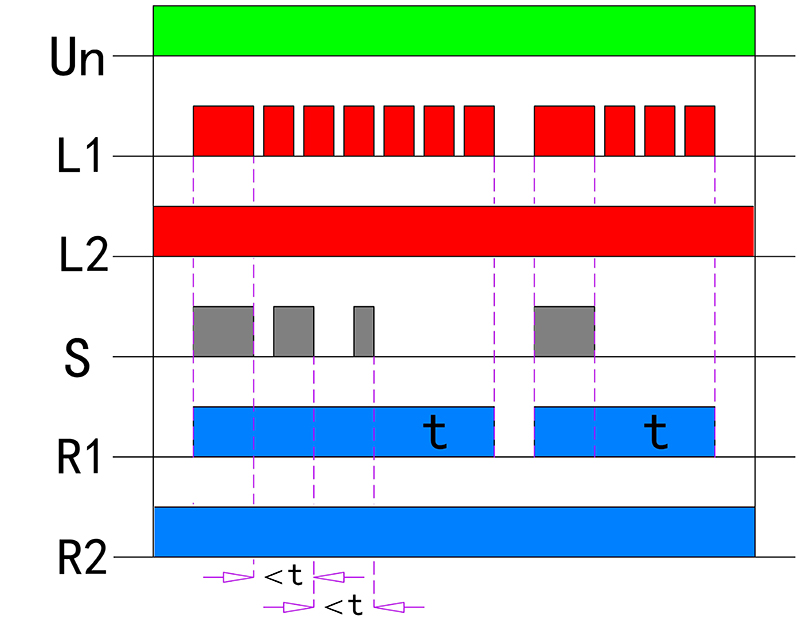

When the relay Un is powered on: The output contact R1 closes when the S control terminal is connected. When the S control terminal is disconnected, the delay begins. After delay t, R1 opens. During delay t, reconnecting or disconnecting the S control terminal resets the delay t and restarts it. This process repeats.
In this mode, output contact R2 closes immediately upon power-on and remains closed until the relay Un is powered off.
Mode characteristics:
● Delay triggered on falling edge of S
● Delay can be reset
● Can be retriggered
