| ■ Technical Data |

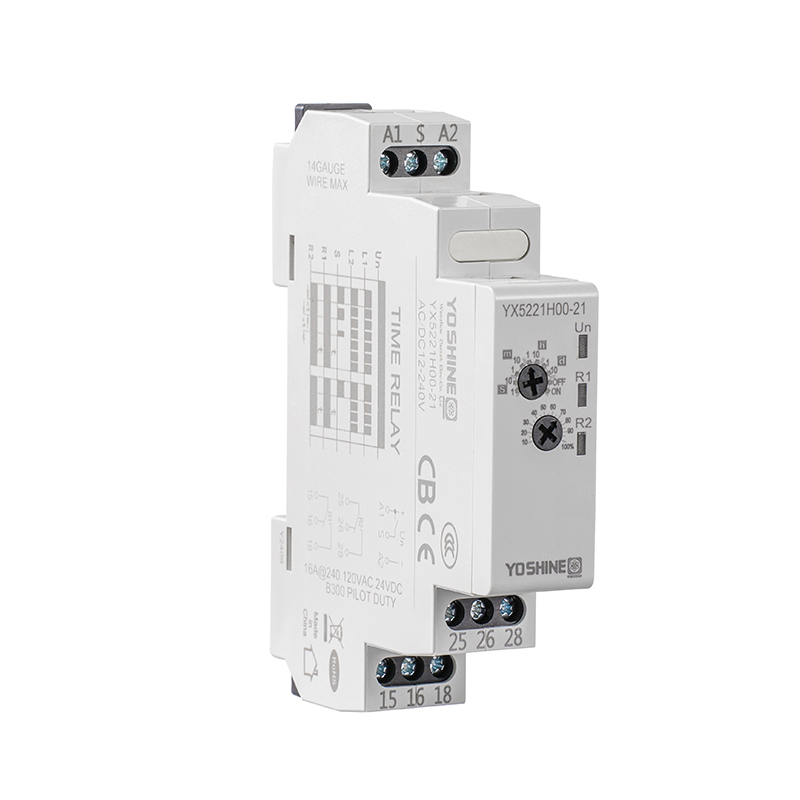

YX5221H00-21 | ||
| ■ Output Characteristics | DPDT Off Delay | ■ Rated Current | 10A /16A |
| ■ Working Voltage |
Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC 12- 240V, AC/DC 24- 240V |
■ Time Range |
0.1S~10D |
| ■ Set tolerance | 10% | ■ Repeat accuracy | 2% |
When the relay Un is powered on: The output contacts R1 and R2 close when the S control terminal is connected. When the S control terminal is disconnected, the delay begins. After delay t, R1 and R2 open. During delay t, reconnecting or disconnecting the S control terminal resets the delay t and restarts it. This process repeats.
Mode characteristics:
● Delay triggered on falling edge of S
● Delay can be reset
● Can be retriggered
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Guide Rail Type Triggerable Time Relay Supplier and Wholesale YOSHINE Guide Rail Type Triggerable Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
