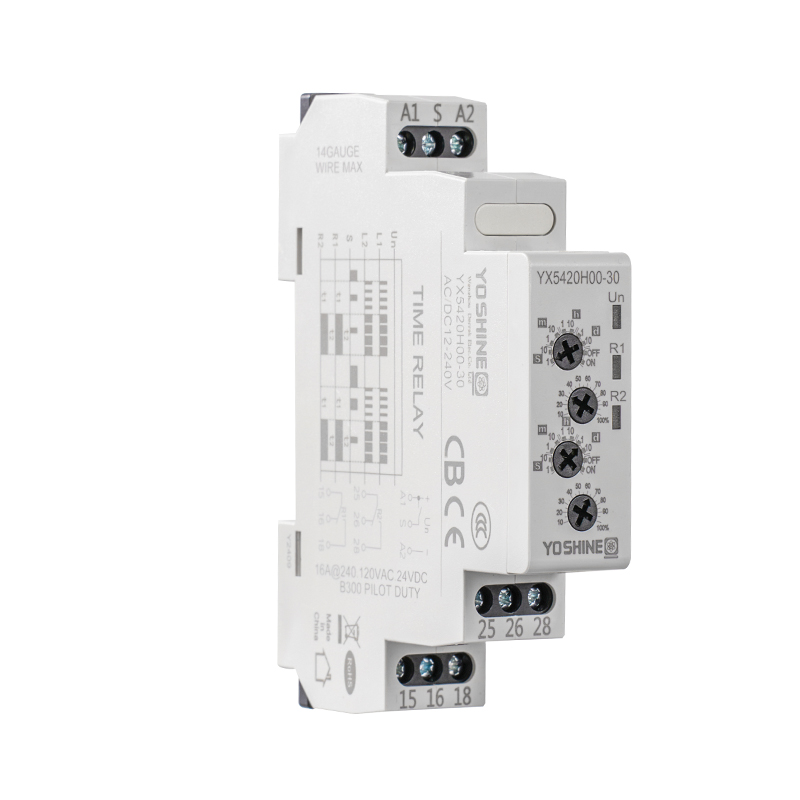

| ■ Characteristics | Single trigger dual time delay on - falling edge | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
On delay DPDT |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 10 on | ■ Alternative Models |

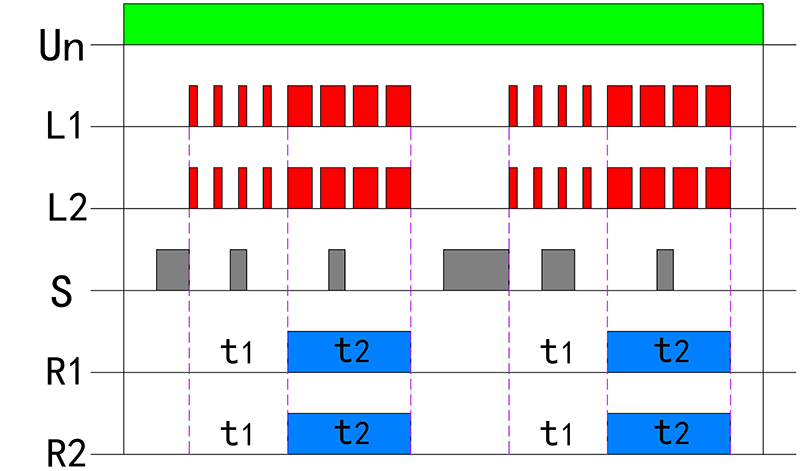

When the relay Un is powered on:
The S control terminal is switched on and off, initiating a delay. After a delay time of t1, both output contacts R1 and R2 close. After an additional delay time of t2, both R1 and R2 open. Re-triggering the S control terminal during the delay has no effect. This cycle repeats.
Mode Features:
● Delay is triggered by the falling edge of S.
● The delay cannot be reset.
● Can be triggered again to start.
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Single Trigger Dual Time Falling Edge Time Relay Supplier and Wholesale YOSHINE Single Trigger Dual Time Falling Edge Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
