| ■ Technical Data |

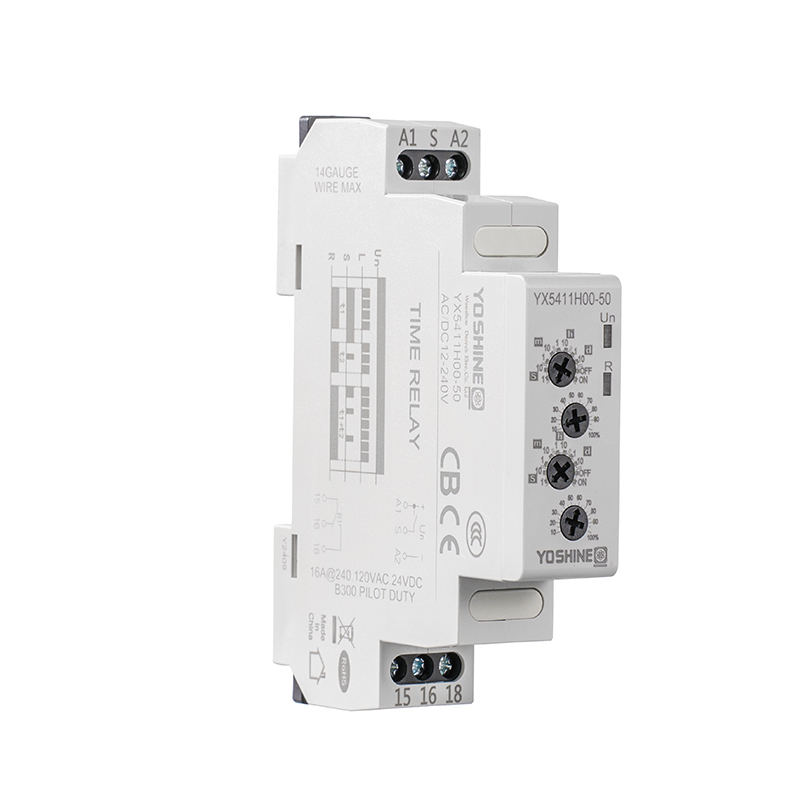

YX5411-50 | ||
| ■ Output Characteristics | SPDT On & Off delay | ■ Rated Current | 10A /16A |
| ■ Working Voltage |
Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC 12- 240V, AC/DC 24- 240V |
■ Time Range |
0.1S~10D |
| ■ Set tolerance | 10% | ■ Repeat accuracy | 2% |

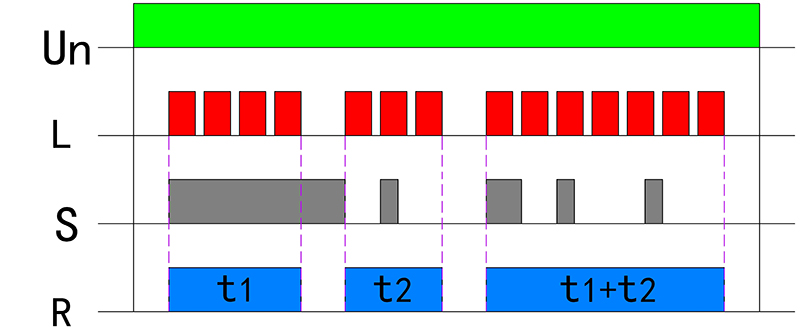

When relay Un is powered on:
When the S control terminal is connected, output contact R closes and the delay starts. After delay t1, R opens. When the S control terminal is disconnected, R closes again and opens after delay t2. If the S control terminal disconnects before t1 is reached, R remains closed for t1+t2 before opening. The process repeats.
Mode characteristics:
● Triggered by both rising and falling edges of S
● Delay cannot be reset
● Can be triggered again
Binao Electrical Co.,Ltd is an OEM/ODM YOSHINE Double Trigger Double Time Off Delay Time Relay Supplier and Wholesale YOSHINE Double Trigger Double Time Off Delay Time Relay Company. YOSHINE's products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client's requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
