| ■ Technical Data |

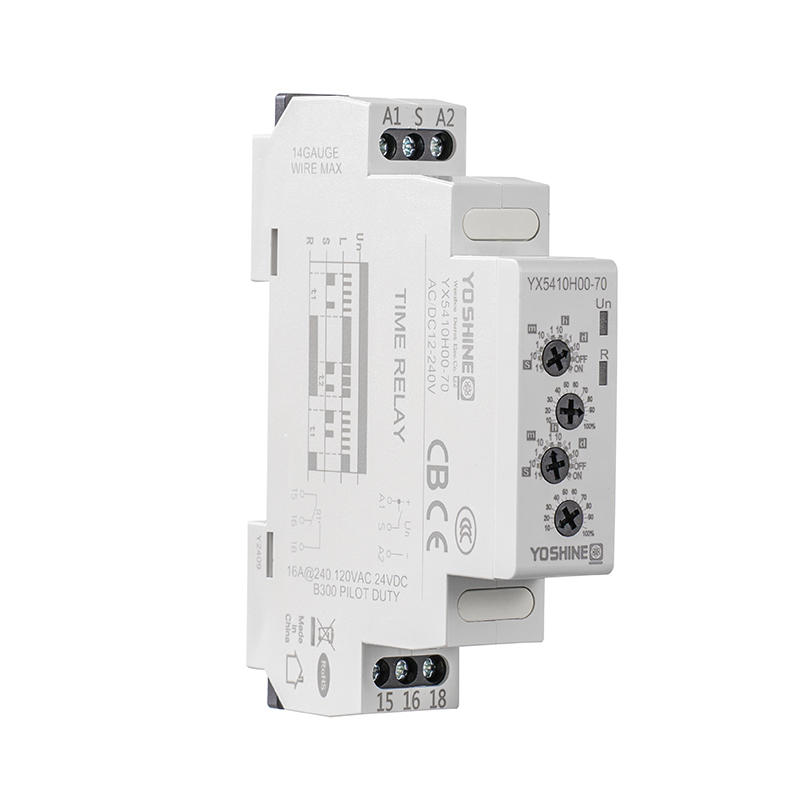

YX5410-70 | ||
| ■ Output Characteristics | SPDT On & Off delay | ■ Rated Current | 10A /16A |
| ■ Working Voltage |
Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC 12- 240V, AC/DC 24- 240V |
■ Time Range |
0.1S~10D |
| ■ Set tolerance | 10% | ■ Repeat accuracy | 2% |

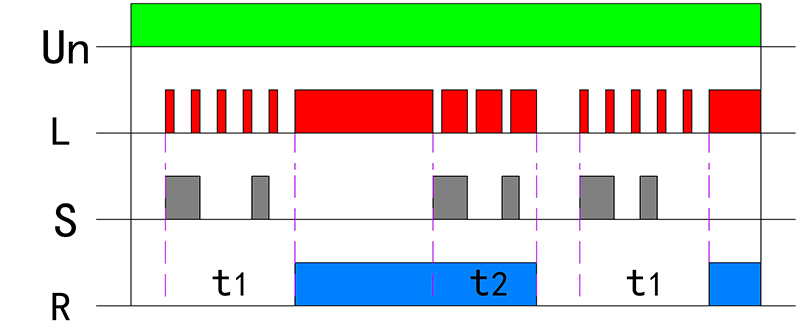

When relay Un is powered on:
When the S control terminal is connected, the delay starts, and after delay t1, output contact R closes. When the S control terminal is connected again, the relay delays by t2 before R opens. The process repeats.
Mode characteristics:
● Triggered by the rising edge of S
● Delay cannot be reset
● Can be triggered again
