| ■ Technical Data |

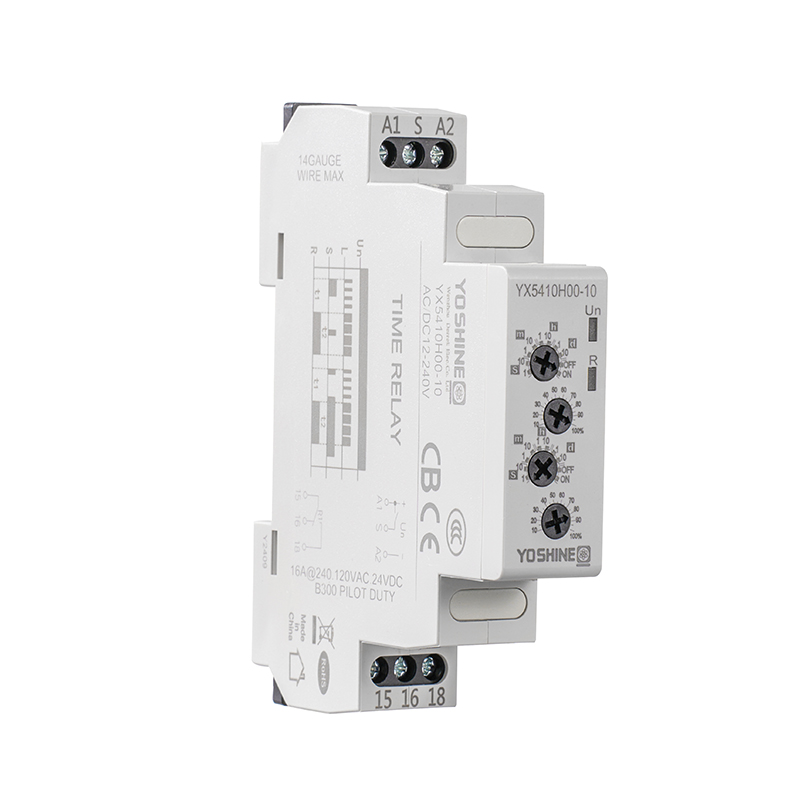

YX5410H00-10 | ||
| ■ Output Characteristics | SPDT On & Off delay | ■ Rated Current | 10A /16A |
| ■ Working Voltage |
Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC 12- 240V, AC/DC 24- 240V |
■ Time Range |
0.1S~10D |
| ■ Set tolerance | 10% | ■ Repeat accuracy | 2% |
When the relay Un is powered on:
The S control terminal is activated, initiating a delay. After a delay time of t1, output contact R closes. After an additional delay time of t2, R opens. Re-triggering the S control terminal during the delay has no effect. This cycle repeats.
Mode Features:
● Delay is triggered by the rising edge of S.
● The delay cannot be reset.
● Can be triggered again to start.
