YOSHINE On Delay Time Relay

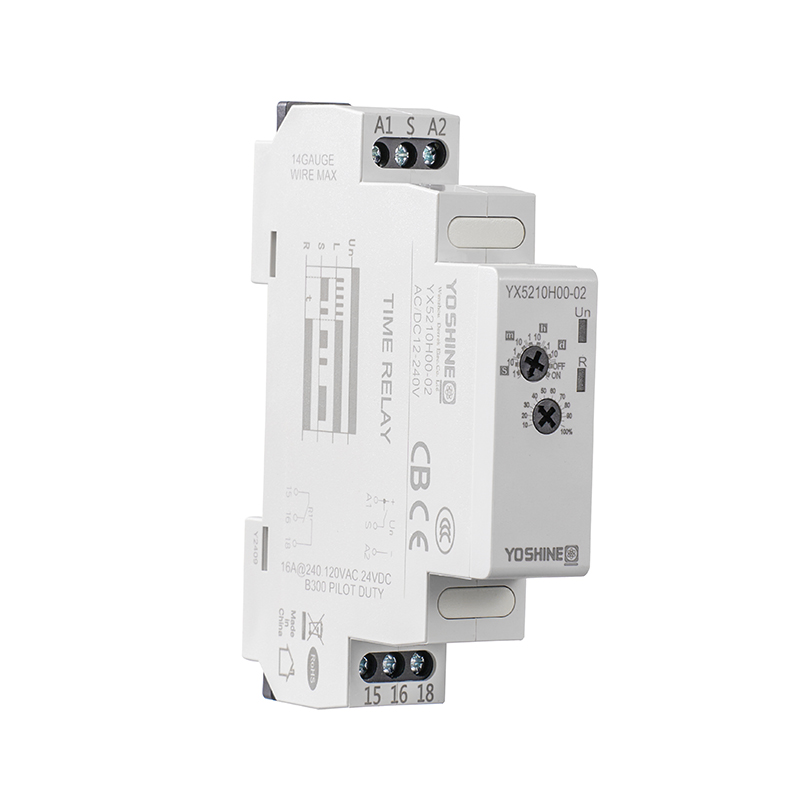

The YX5210H00-02 On Delay Time Relay is designed for applications that require a single controlled switching output with delayed activation. Featuring an SPDT (Single Pole Double Throw) on-delay configuration, this model provides a compact and efficient solution for timing-based control in electrical and automation systems.

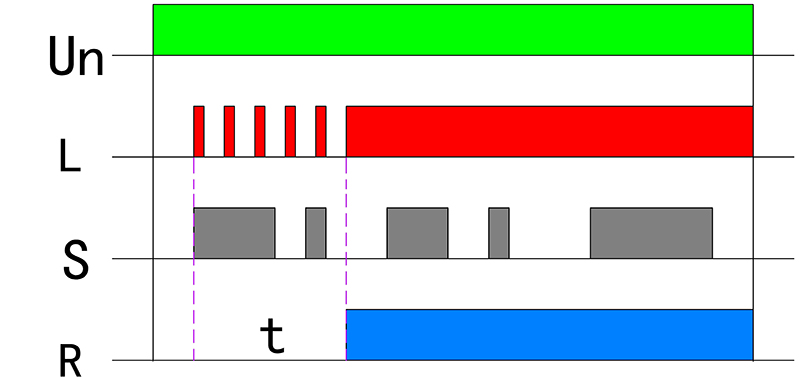

When voltage is applied, the relay begins its preset timing cycle. After the selected delay interval, the output contact changes state, enabling controlled activation of the connected circuit. This delayed switching function helps prevent abrupt startup conditions and supports orderly system sequencing.

The SPDT configuration offers a straightforward switching structure, making it suitable for applications where only one circuit requires timed control. Its compact output arrangement supports space-conscious panel layouts and simplifies wiring requirements. Designers and technicians can integrate the relay into various control environments without adding unnecessary complexity.

This model is commonly used in lighting systems, small motor controls, pump management units, and basic automation equipment. In these scenarios, delayed activation can help reduce current surges, allow voltage stabilization, and coordinate equipment operation. The on-delay feature also contributes to improved operational logic in control systems where devices must activate in a defined order.

The YX5210H00-02 is engineered for stable timing consistency and repeatable performance. Its internal timing mechanism ensures reliable switching behavior over extended operating cycles. The relay can be mounted within control cabinets, distribution panels, or machinery enclosures, supporting both OEM production and system maintenance applications.

For projects requiring a single delayed switching function without additional outputs, the SPDT on-delay design provides a balanced and efficient solution. It allows system builders to achieve functional timing control while maintaining straightforward circuit architecture.

The YX5210H00-02 offers dependable on-delay performance for applications where simplicity, reliability, and structured activation timing are essential components of system design.
