| ■ Technical Data |
YX5422H00 | ||
| ■ Output Characteristics | DPDT Cyclic Delay | ■ Rated Current | 10A /16A |
| ■ Working Voltage |
Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC 12- 240V, AC/DC 24- 240V |
■ Time Range |
0.1S~100D |
| ■ Set tolerance | 10% | ■ Repeat accuracy | 2% |
Dual-Mode Cycling (Normal Mode is Mode 1, If S Control Terminal is Activated Before Power-On, Enter Mode 2)

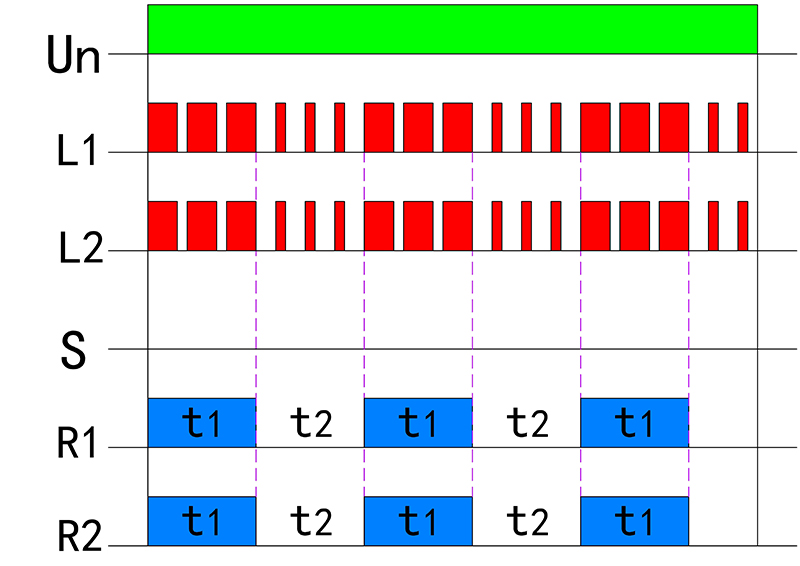

Mode 1: When relay Un is powered on, output contacts R1 and R2 close and the delay starts. After delay t1, R1 and R2 open. After delay t2, R1 and R2 close again. After another delay t1, R1 and R2 open. This delay cycle continues until relay Un is powered off.

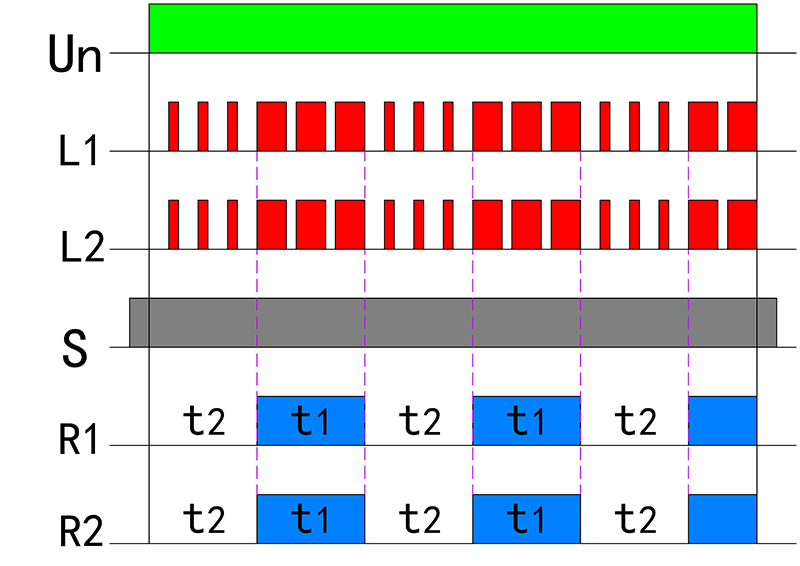

Mode 2: If the S control terminal is activated before power-on, when relay Un is powered on, the delay starts. After delay t2, output contacts R1 and R2 close. After delay t1, R1 and R2 open. After another delay t2, R1 and R2 close again. This cycle continues until relay Un is powered off.
 |
 |
