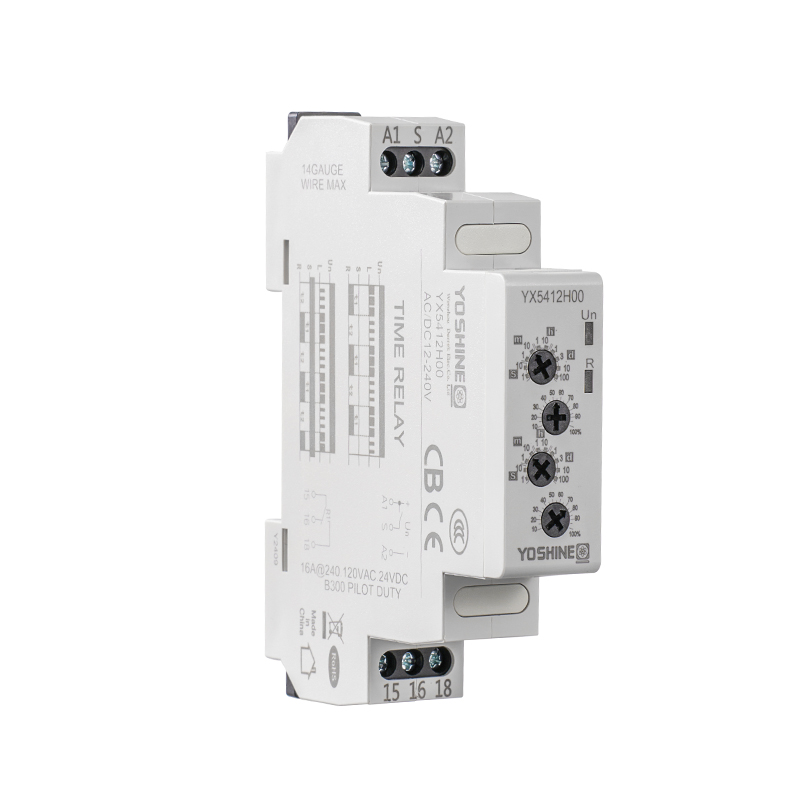

| ■ Characteristics | Dual Time Cycle Delay 1/Dual Time Cycle Delay 2 | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
SPDT |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Alternative Models | 5410 | ■ Development Code | 16 |
Dual-Mode Cycling (Normal Mode is Mode 1, If S Control Terminal is Activated Before Power-On, Enter Mode 2)

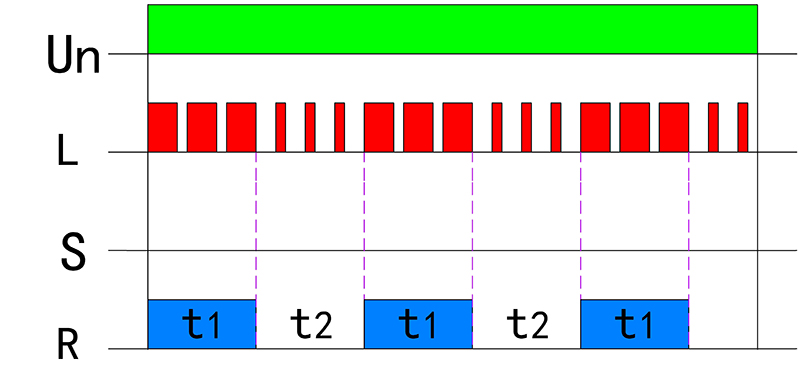

Mode 1: When relay Un is powered on, output contact R closes and the delay starts. After delay t1, R opens. After delay t2, R closes again. After another delay t1, R opens. This cycle continues until relay Un is powered off.

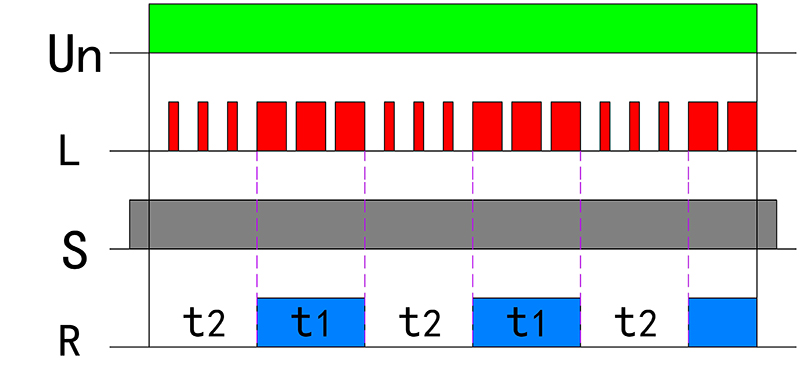

Mode 2: If the S control terminal is activated before power-on, when relay Un is powered on, the delay starts. After delay t2, output contact R closes. After delay t1, R opens. After another delay t2, R closes again. This cycle continues until relay Un is powered off.
 |
 |
