| ■ Technical Data |

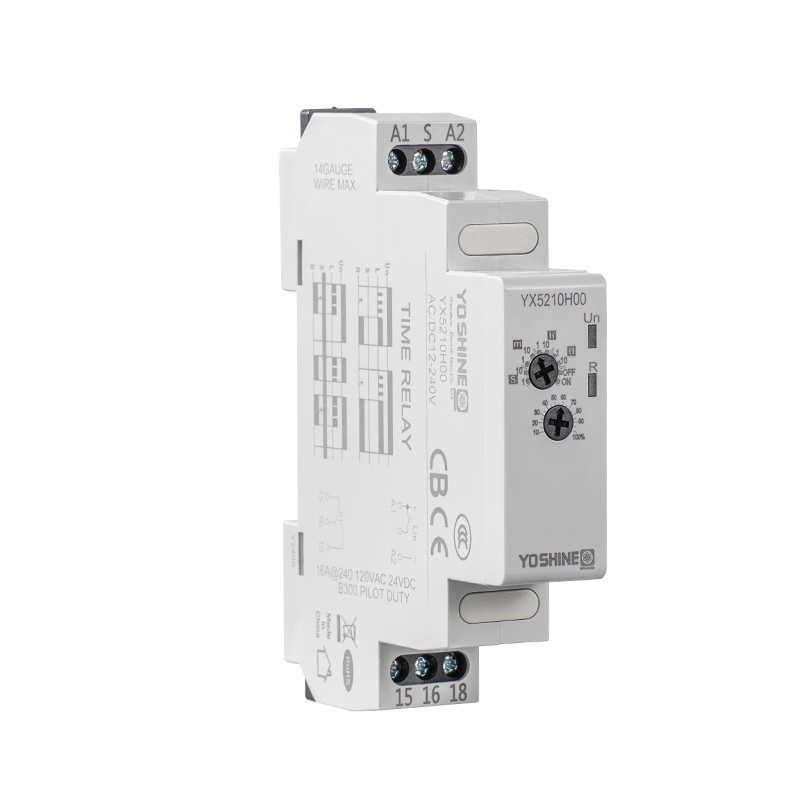

YX5210H00 | ||
| ■ Output Characteristics | SPDT On/Off Delay | ■ Rated Current | 10A /16A |
| ■ Working Voltage |
Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC 12- 240V, AC/DC 24- 240V |
■ Time Range |
0.1S~10D |
| ■ Set tolerance | 10% | ■ Repeat accuracy | 2% |
Dual Mode (Normal Mode is On Delay, with S Control Terminal Priority Leading to Off Delay Mode)

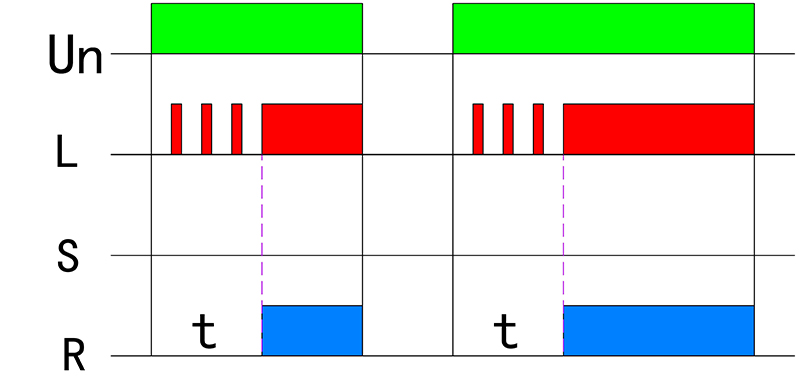

On Delay: When the relay Un is powered on, the delay starts. After a delay time (t), the output contact R closes. It remains closed until the relay is powered off, at which point R opens.

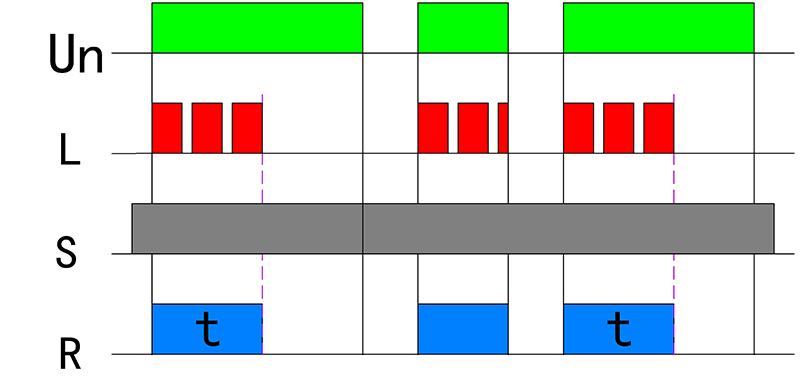

Off Delay: When the S control terminal is prioritized and powered before the relay, once relay Un is powered on, the output contact R closes immediately and the delay starts. After a delay time (t), R opens.
 |
 |
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Multiple Time Period On Delay&Off Delay SDPT Time Relay Module Supplier and Wholesale YOSHINE Multiple Time Period On Delay&Off Delay SDPT Time Relay Module Company. YOSHINE's products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client's requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
