| ■ Technical Data |

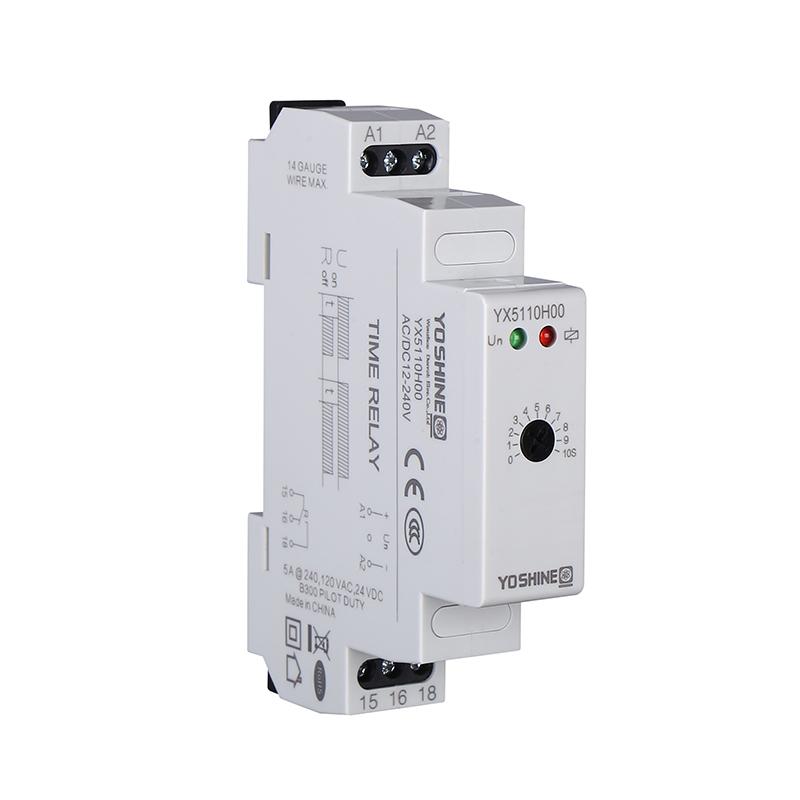

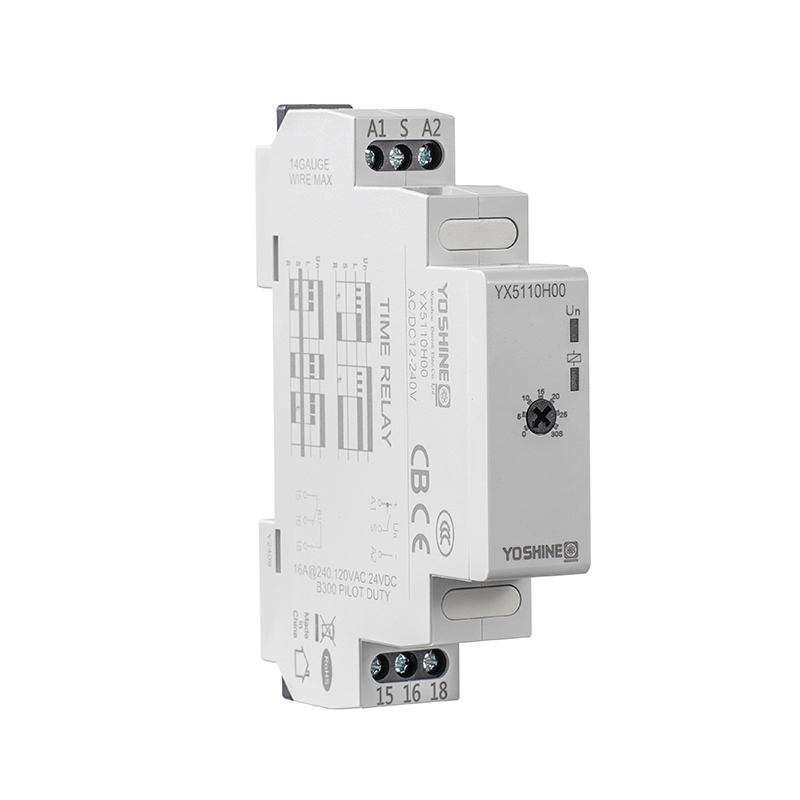

YX5110 | ||
| ■ Output Characteristics | SPDT On /Off Delay | ■ Rated Current | 10A /16A |
| ■ Working Voltage |
Single Voltage: AC12V, AC24V, AC110V, AC220V, DC 12V, DC24V Wide Voltage: AC/DC12 240V, AC/DC24-240V |
■ Time Range |
1S, 3S, 6S, 10S, 30S, 60S, 3M, 6M, 10M, 30M, 60M |
| ■ Time Range | 1S, 3S, 6S, 10S, 30S, 60S, 3M, 6M, 10M, 30M, 60M | ■ Set tolerance | 10% |
| ■ Repeat accuracy | 2% |
Variations for modes with two relay contacts (R1 and R2):

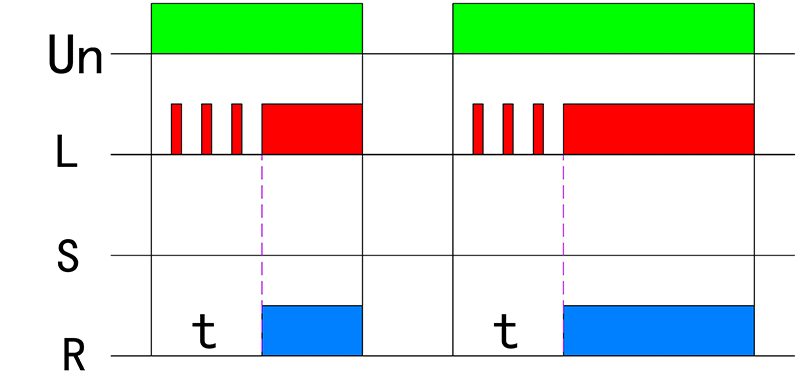

On Delay: When relay Un is powered on, the relay contacts R1, R2 engage after the set delay t and remain engaged until the power is cut off, at which point R1, R2 reset.

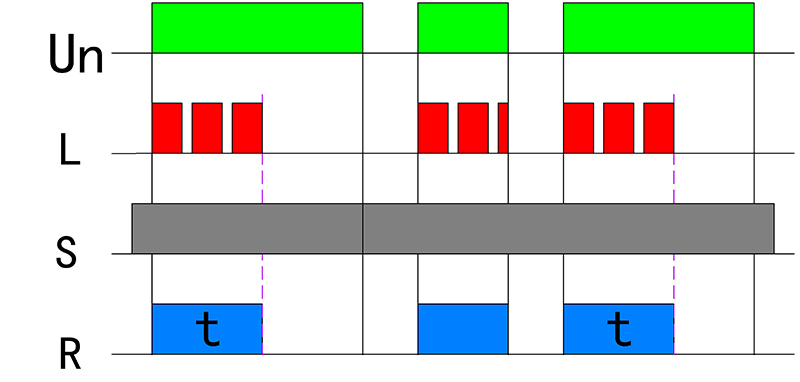

Off Delay: If the S control terminal is engaged before the power, when relay Un is powered on, the relay contacts R1, R2 engage immediately and start the delay t. After the delay, R1, R2 release.
 |
 |
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Single Time Period On Delay&Off Delay SDPT Time Relay Module Supplier and Wholesale YOSHINE Single Time Period On Delay&Off Delay SDPT Time Relay Module Company. YOSHINE's products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client's requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
