| ■ Technical Data |

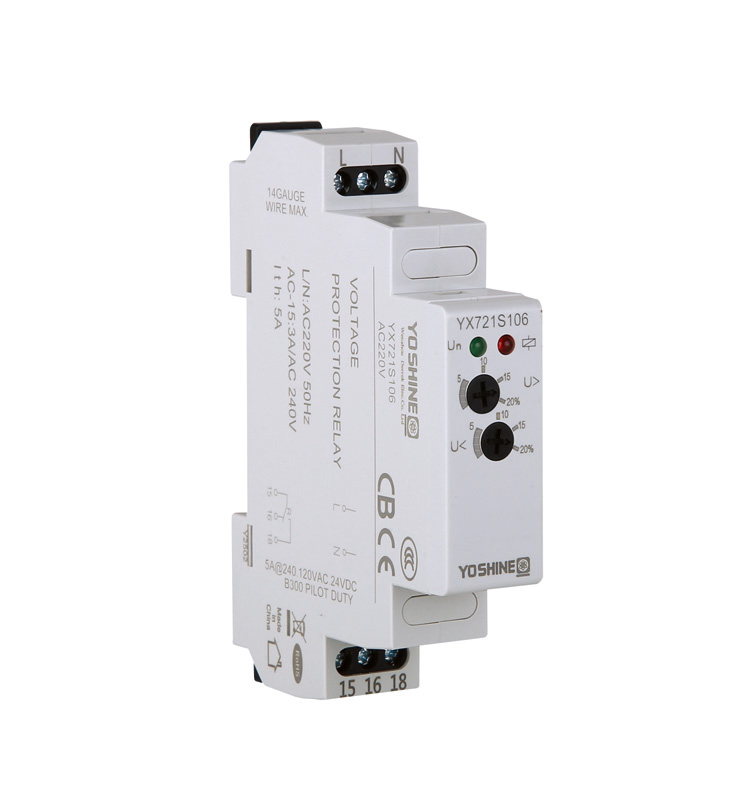

YX721S106 |
■ Monitoring Type | Single Phase | ||||||
| ■ Output Characteristics | SPDT | ■ Working Voltage | Single Voltage: AC110V, AC220V | ||||||
| ■ Frequency | 50/60Hz | ■ Over Voltage | 5~20% | ||||||
| ■ Under Voltage | 5~20% | ■ Protection Delay | 3S | ||||||
| ■ Hysteresis Voltage | - | ■ Recovery Delay | 0.1S | ||||||
| ■ Phase Sequence | - | ■ Phase Failure | - | ||||||
| ■ Asymmetrical Voltage | - | ■ Response Time of Relay | 0.5S | ||||||
| ■ Contact Rating | 3A/250VAC | ■ Ambient Temperature | -10°C~+55°C | ||||||
| ■ Setting Tolerance | ±10%MAX | ■ Repeatability | ±2%MAX | ||||||
| ■ Temperature Error | ±2%MAX | ||||||||

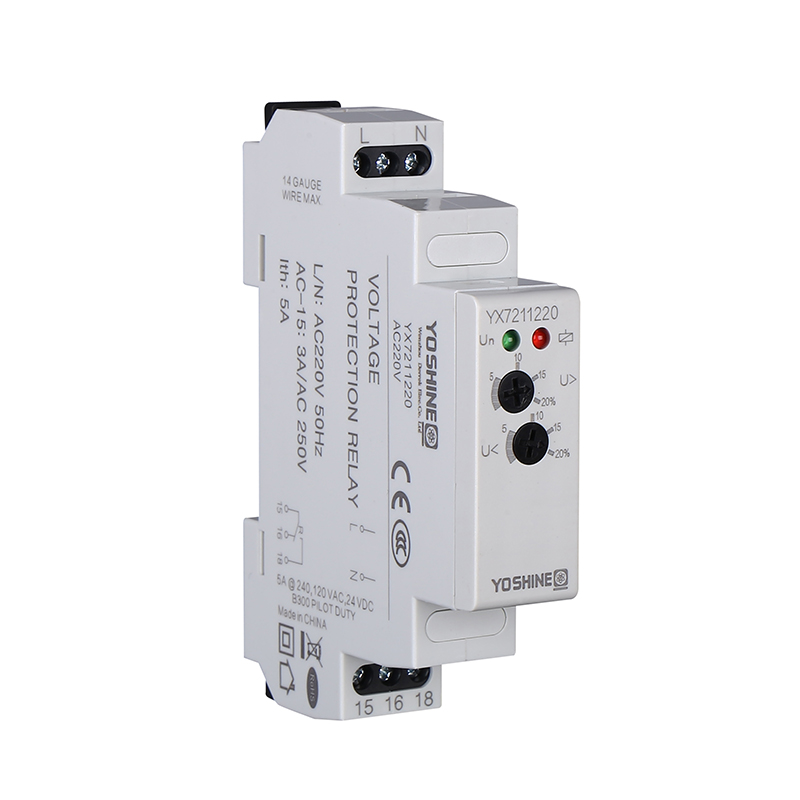

Single-phase Voltage Protection Relay: Equipped with over-voltage and under-voltage protection, with user-defined over-voltage and under-voltage values. It disconnects the load when the voltage is too high or too low, preventing damage, and automatically restarts the load when the voltage returns to normal.
Binao Electrical Co.,Ltd is an OEM/ODM YOSHINE Single-Phase Self-Setting Over/Under Voltage Protection Relay Supplier and Wholesale YOSHINE Single-Phase Self-Setting Over/Under Voltage Protection Relay Company. YOSHINE's products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client's requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
