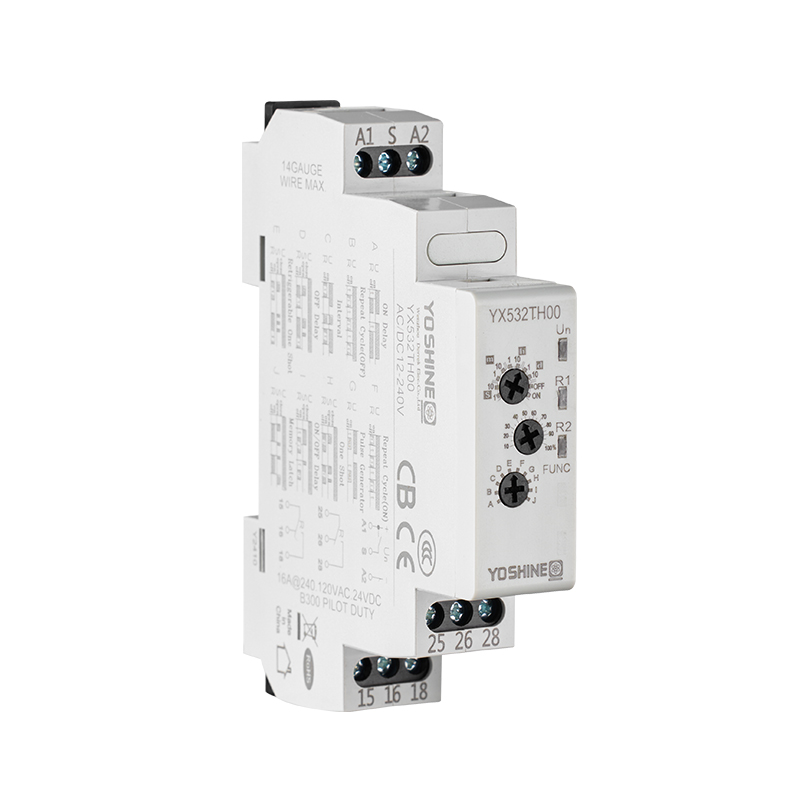

| Output Characteristics | YX532T | ||
| ■ Output Characteristics | DPDT | ■ Contact Material |
Silver Alloy |
| ■ Current Rating |
10A/16A | ||
| Input Characteristics |
|||
| ■ Voltage Range |
Single Voltage :AC110V,AC220V,AC12V,DC 12V,AC24V,DC24V Wide Voltage: AC/DC12-240V,AC/DC 24-240V |
||
| Timing Characteristics |
|||
| ■ Functions Available |
10 | ■ Time Ranges |
0.1S~10D |
| ■ Tolerance(Mechanical Setting) |
10% | ■ Repeat accuracy |
2% |
| ■ Reset Time |
500ms | ■ Trigger Pulse Length(Minimum) |
50ms |
| Environment |
|||
| ■ Ambient Temperature around the devicei |
Storage: -30C~ +70C (-22F~ +158'F) Operation: -20C~ +55C(-4F~ +1319F) |
| Function | Timing Chart | Operation |

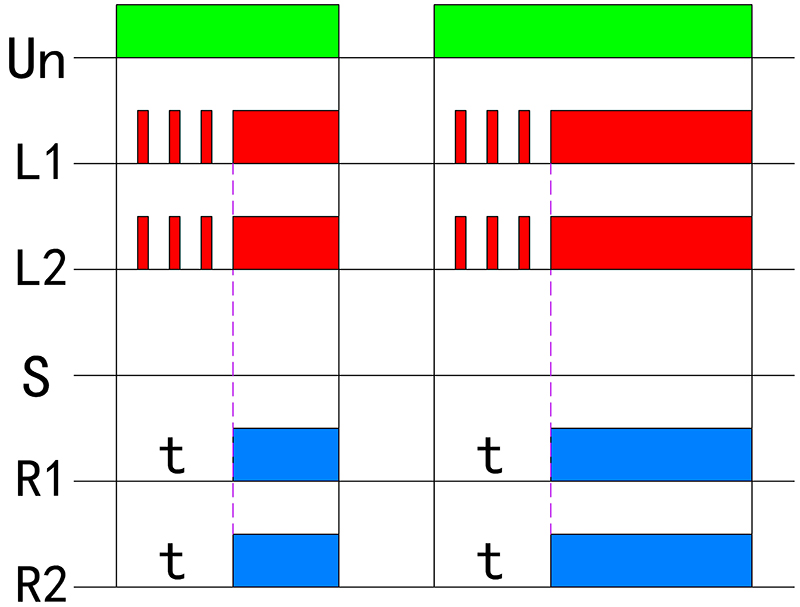

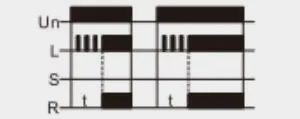

| A On Delay Power On |
 |
When the input voltage U is applied, timing delay t begins. Relay contacts R change state after the time delay is complete. Contacts R return to their shelf state when the input voltage U is removed. Trigger switch is not used in this function. |

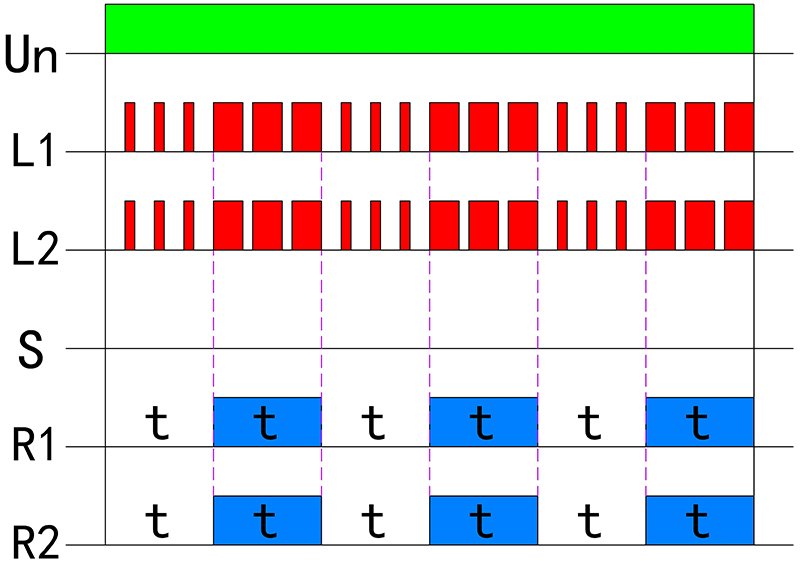

| B Repeat Cycle Starting Off |
 |
When the input voltage U is applied, timing delay t begins. When time delay t is complete, relay contacts R change state for time delayt. This cycle will repeat until input voltage U is removed. Trigger switch is not used in this function. |

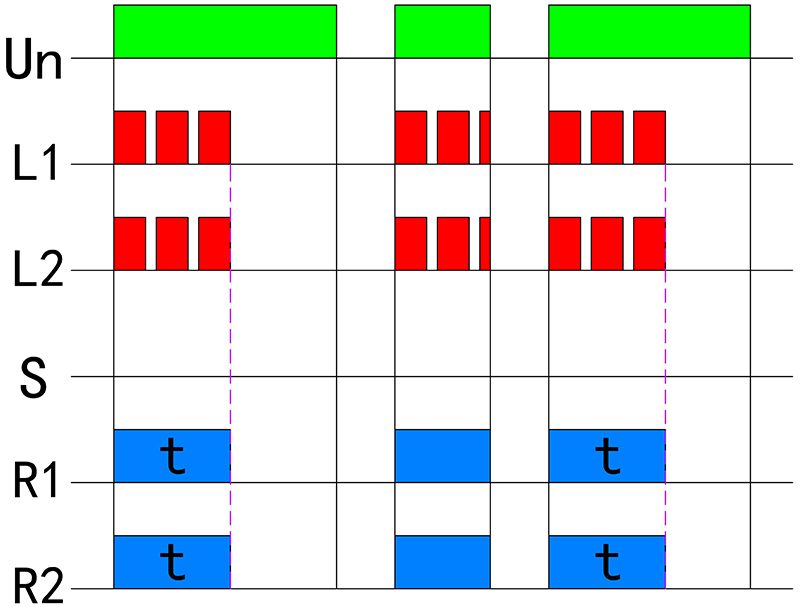

| C Interval Power On |
 |
When input voltage U is applied,relay contacts R change state Immediately and timing cycle begins. When time delay is complete, contacts return to shelf state. When input voltage U is removed, contacts will also return to their state. Trigger switch is not used in this function. |

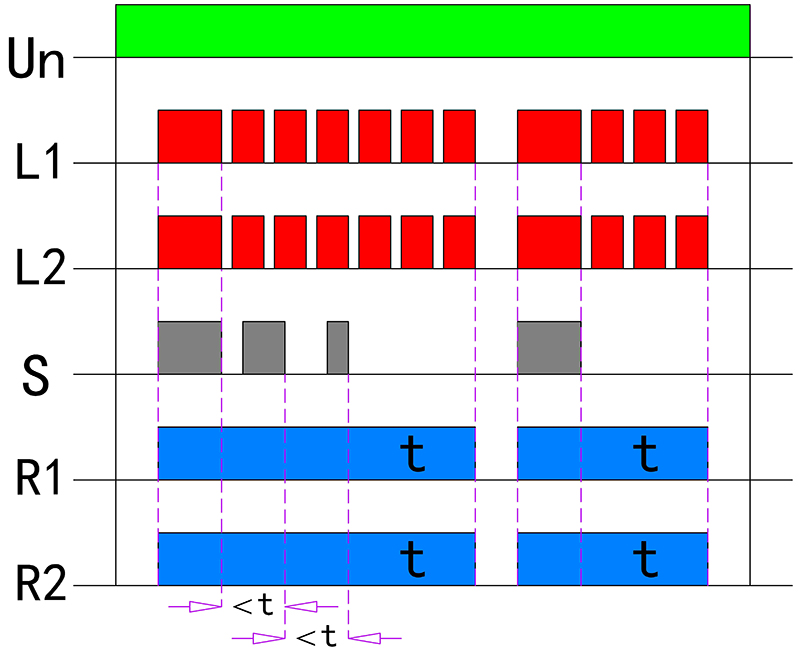

| D Off Delay S Break |
 |
Input voltage U must be applied continuously. When trigger S is closed, relay contacts R change state. When trigger S is opened, delay t begins. When trigger S is opened, the delay begins again, and relay contacts remain in their energized state, if input voltage U is removed, relay contacts R return to their shelf state. |

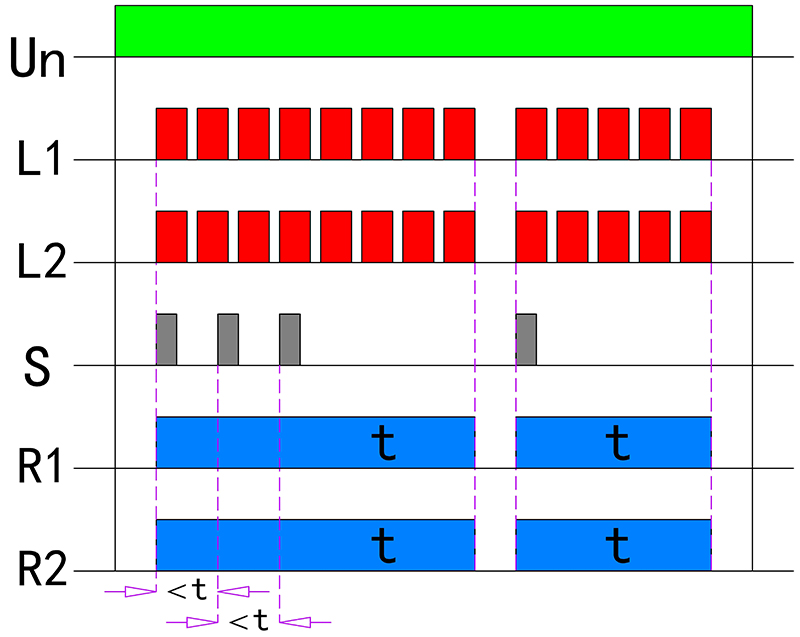

| E Retriggerable One Shot |
 |
Upon application of input voltage U, the relay is ready to accept trigger signal S. Upon application of the trigger signal S, the relay contacts R transfer, and the preset time t begins. At the end of the preset time. The relay contacts R return to their normal condition unless the trigger signal S is opened and closed prior to time out t (before preset time elapses). If input voltage U is removed, relay contacts R return to their shelf state. |

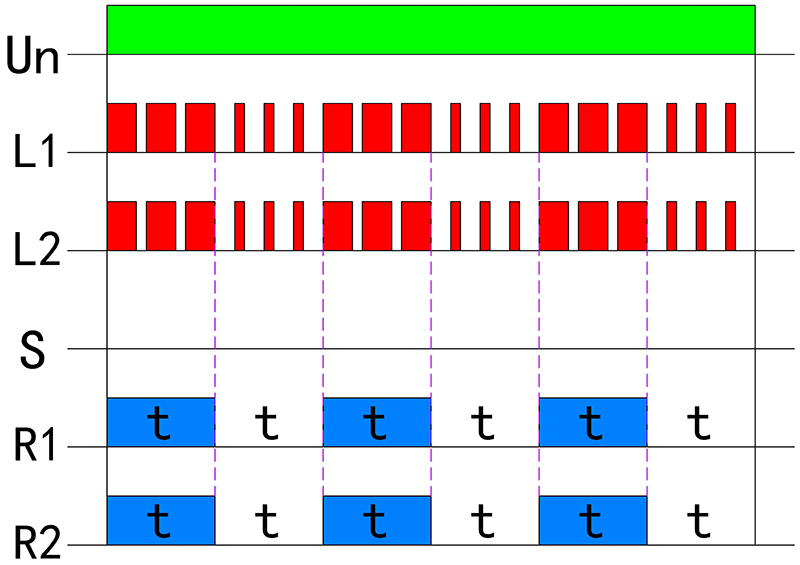

| F Repeat Cycle Starting O |
 |
When input voltage U is applied, relay contacts R change state immediately and time delay t begins. When time delay t is complete, contacts return to their shelf state for time delay t. This cycle will repeat until input voltage U is removed. Trigger switch is not used in this function. |

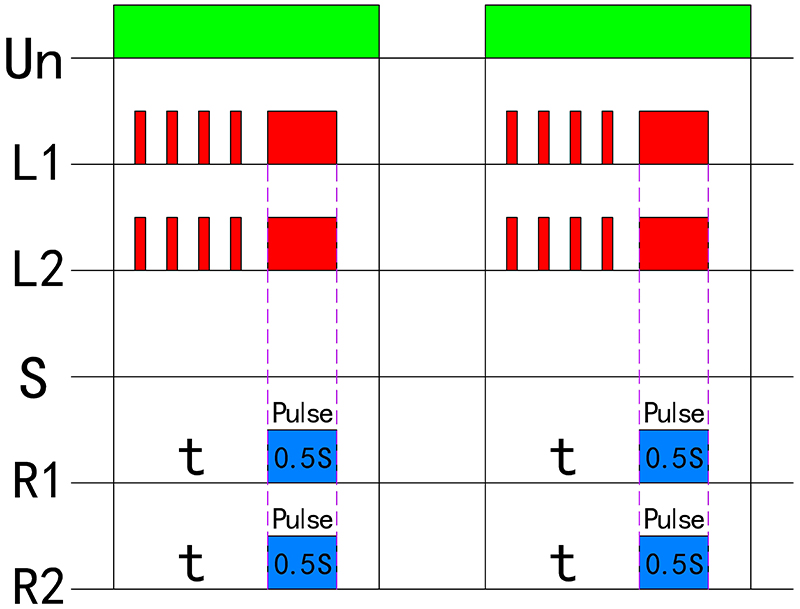

| G Pulse Generator |
 |
Upon application of input voltage U. a single output pulse of 0.5 seconds is delivered tothe relay offer time delay t. Power must be removed and reapplied to repeat pulse. Trigger switch S is not used in this function. |

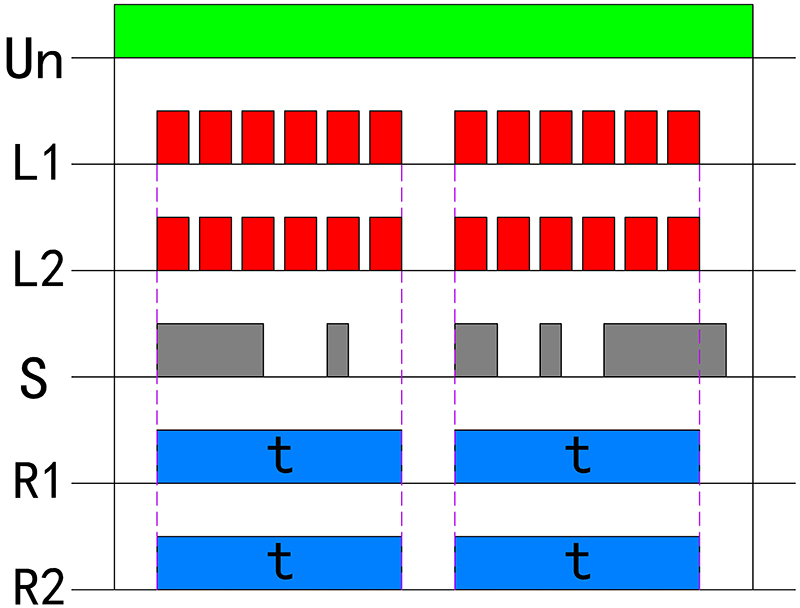

| H One Shot |
 |
Upon application of input voltage U,the relay is ready to accept trigger signal S. Upon application of the trigger signal S, the relay contacts R trasher and the preset time t begins. During time-out,the trigger signal S is ignored. The relay resets by applying the trigger signal S when the relay is not energized. |
|

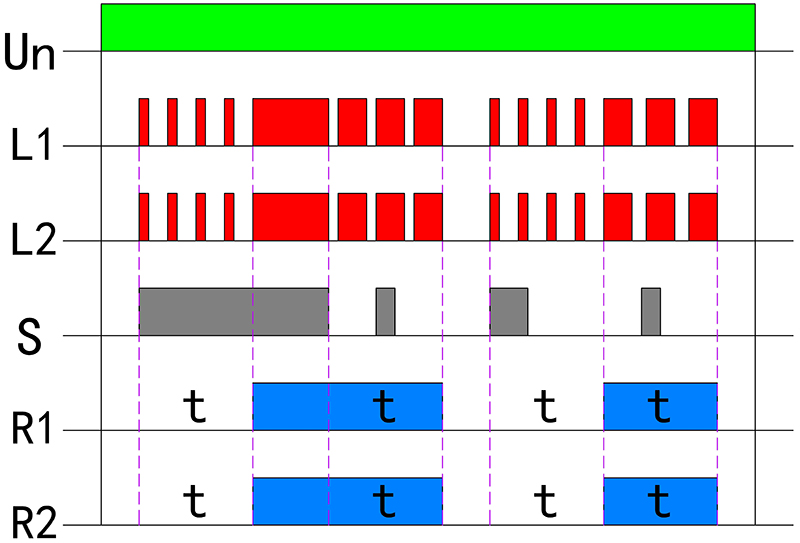

I On/Off Delay |
|
Input voltage U must be applied continuously. When trigger S is closed, time delay t begins. When time delay t is complete, relay contacts R change state and remain transferred until trigger S is opened. If input voltage U is removed, relay contacts R return to their shelf state. |

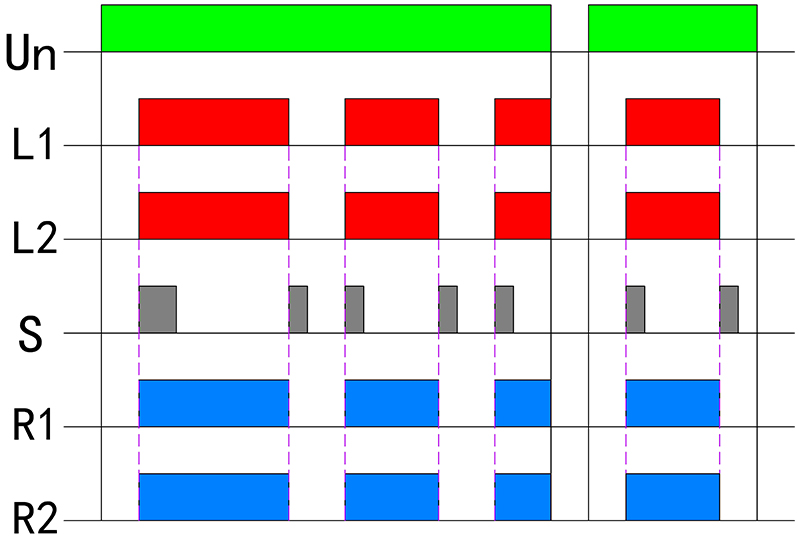

| J Memory Latch S Make |
 |
Input voltage U must be applied continuously. Output changes state with every trigger S closure. If input voltage U is removed, relay contacts R return to their shelf state. |

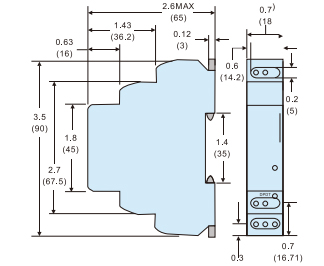

| Wiring Diagrams | Dimensions: in (mm) |
 |
 |
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Ten Funtion DPPT Rail Type Multi-Function Time Relay Supplier and Wholesale YOSHINE Ten Funtion DPPT Rail Type Multi-Function Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
