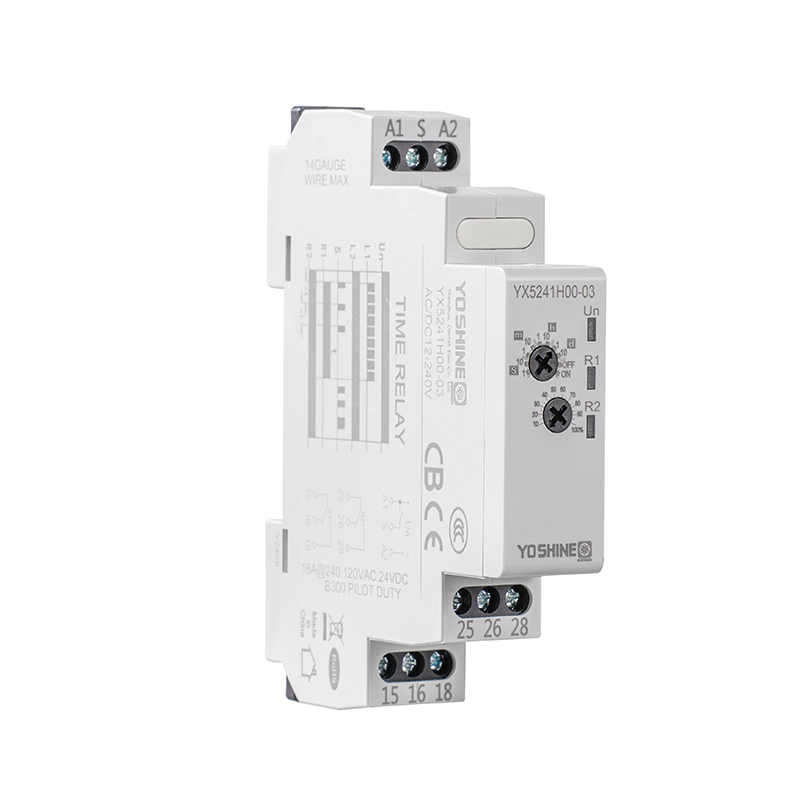

| ■ Characteristics | Single trigger single time delay off | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
Off delay The second instantaneous action |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 19 times | ■ Alternative Models |

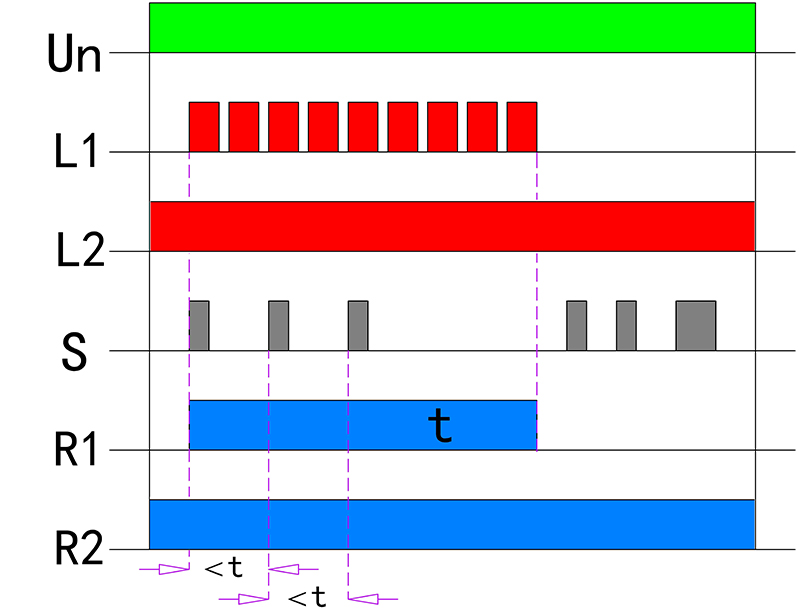

When relay Un is powered on:
When the S control terminal is connected, output contact R1 closes and the delay begins. After the delay of time t, R1 opens. Reconnecting the S control terminal during the delay resets the delay to zero, and the delay restarts. Cannot be triggered again.
In this mode, output contact R2 closes immediately when powered on and remains closed until relay Un is powered off.
Mode characteristics:
● S rising edge triggers delay
● Delay can be reset
● Cannot be triggered again
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Single Trigger Single Time Off Delay Time Relay Supplier and Wholesale YOSHINE Single Trigger Single Time Off Delay Time Relay Company. YOSHINE's products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client's requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
