OEM/ODM YOSHINE Single Trigger Single Time Cycle Time Relay
Home / Product / Time Relay / Trigger Time Relay / YOSHINE Single Trigger Single Time Cycle Time Relay

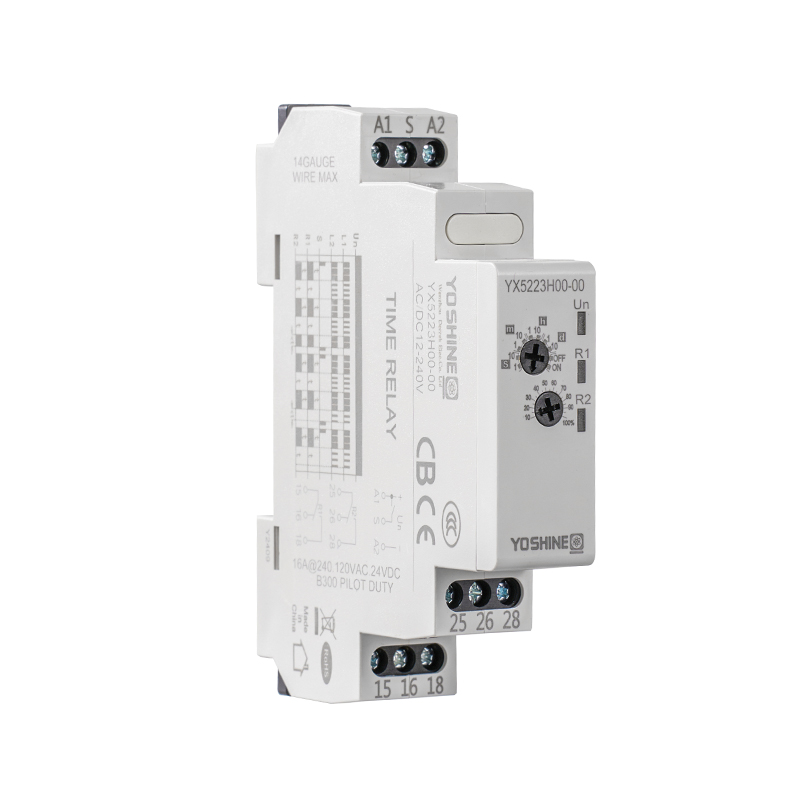

YOSHINE Single Trigger Single Time Cycle Time Relay

The DPDT Circulation Off relay is designed to manage cyclical operations where output contacts need to switch after a single trigger, with a repeating sequence defined by the cycle time. Once activated, the relay operates its dual-pole contacts in a programmed pattern, ensuring that the output remains engaged for a specified duration before automatically resetting to the off state.
This feature makes it particularly suitable for industrial circulation systems, pumps, and automated machinery where timed cycles are essential for process efficiency.

Download PDF
Contact Us
PREV：YOSHINE Single Trigger Single Time Cycle Time Relay NEXT：YOSHINE Single Trigger Single Time Cycle Time Relay

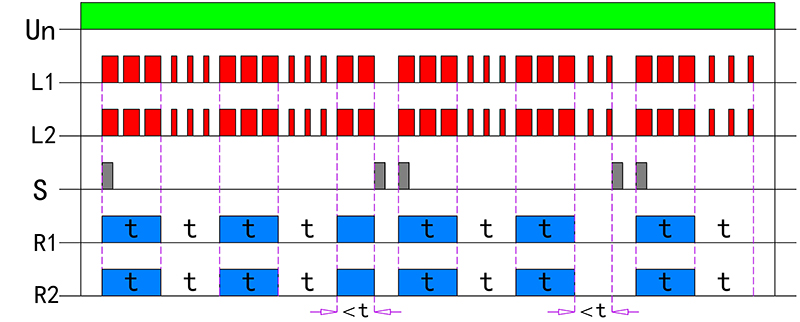

Parameter Functional Description Working Principle Diagram
■ Technical Data
 YX5223H00-00

■ Output Characteristics DPDT Circulation Off ■ Rated Current 10A /16A
■ Working Voltage
 Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V
Wide Voltage: AC/DC 12- 240V, AC/DC 24- 240V		 ■ Time Range
 0.1S~10D
■  Set tolerance 10%  ■ Repeat accuracy 2%
