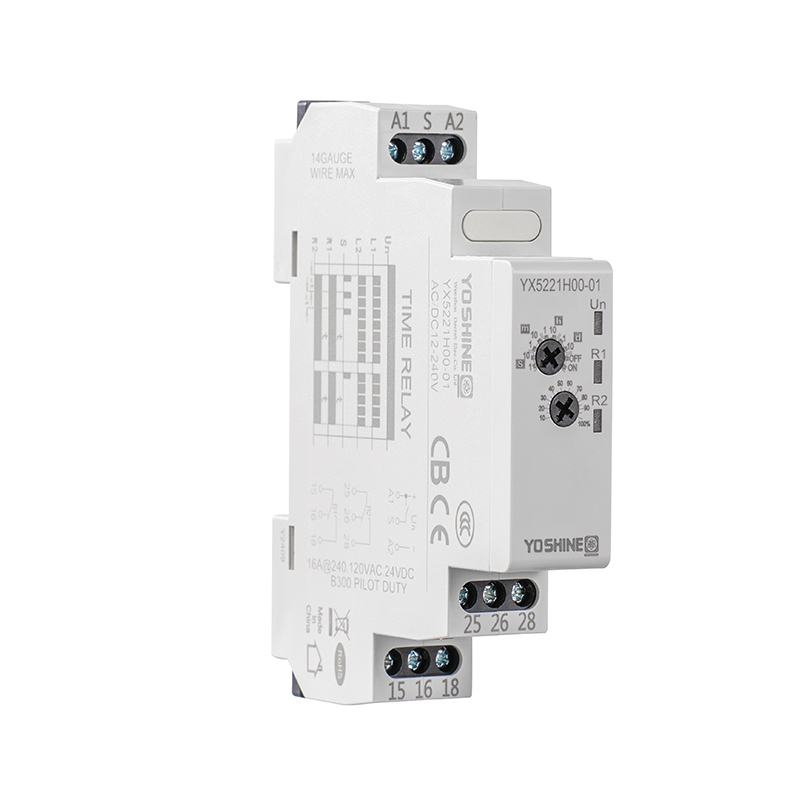

| ■ Characteristics | Single trigger single time delay off - rising edge | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
| ■ Output Characteristics |
Off delay DPDT |
■ Contact Capacity | 5A /16A |
| ■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
| ■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
| ■ Development Code | 20 on | ■ Alternative Models | 5260 |

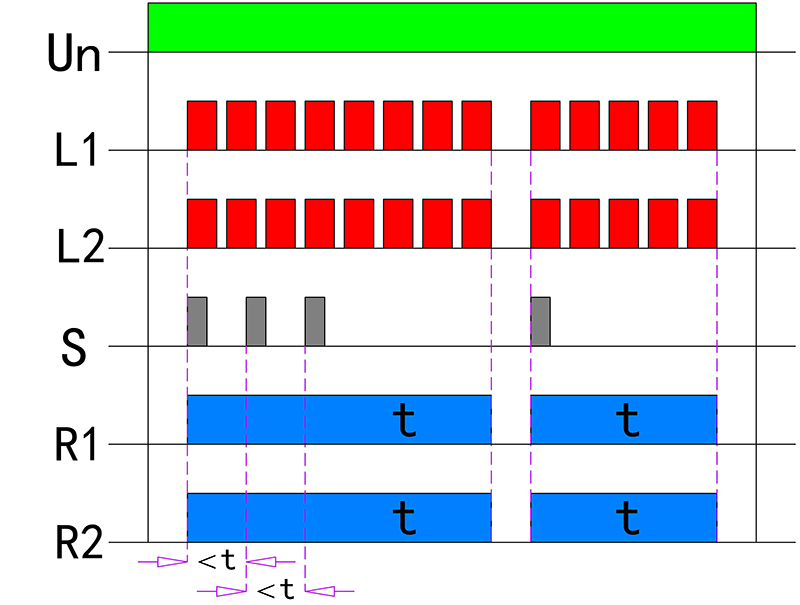

When relay Un is powered on:
When the S control terminal is connected, output contacts R1 and R2 close simultaneously and the delay begins. After a delay of time t, R1 and R2 both open. When the S control terminal is connected again, R1 and R2 close and reset to the delay state. Reconnecting the S control terminal during the delay resets the delay time to zero, and the delay restarts. The cycle repeats.
Mode characteristics:
● S rising edge triggers delay
● Delay can be reset
● Can be triggered again
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Single Trigger Single Time Relay Supplier and Wholesale YOSHINE Single Trigger Single Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
