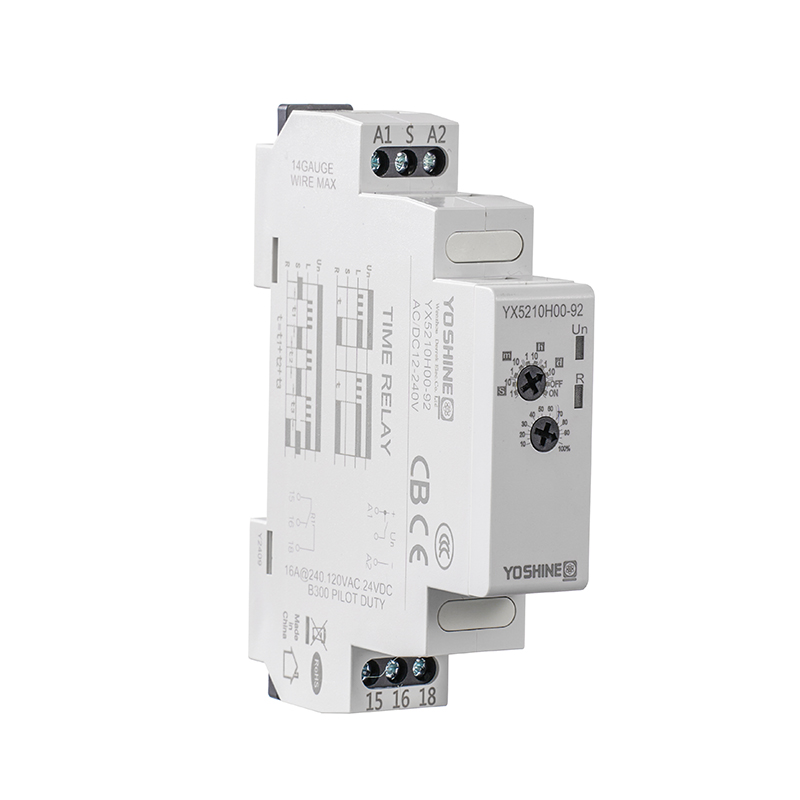

■ Characteristics | Single time on delay/single trigger single time off delay | ■ Operating Voltage |
Single voltage: 12V/24V/110V/220VAC; 12V/24VDC Wide voltage: 24-240VAC/DC; 12-240VAC/DC |
■ Output Characteristics |
On delay SPDT |
■ Contact Capacity | 5A /16A |
■ Delay Range | 0.1s-10days | ■ Setting Tolerance | 5% |
■ Repeatability | 2% | ■ Installation | Guide Rail Mounting |
■ Development Code | 23 |

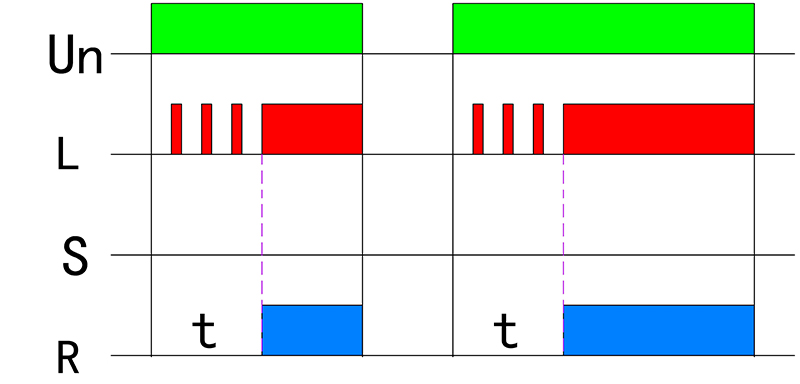

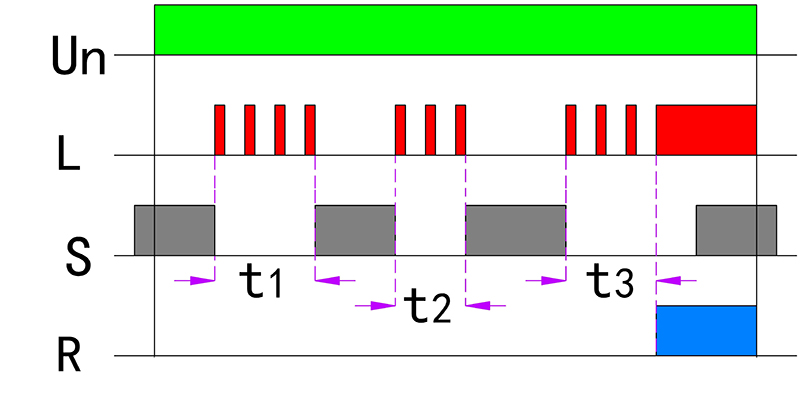

Dual-mode power-on delay (default mode is Mode 1; if S control terminal is connected before power, Mode 2 is activated): Mode 1: When relay Un is powered on, the delay starts. After the delay time t, the output contact R closes. When relay Un is powered off, R opens. The S control signal is not valid in this mode. Mode 2: If the S control terminal is connected before power, once relay Un is powered on, after the cumulative delay during S disconnection reaches time t, the output contact R closes.
Mode Features:
● Falling edge of S triggers delay.
● Rising edge of S pauses delay.
● Trigger time is cumulative with pause.
● Cannot be triggered again to start.
![]() |
![]() |
