| ■ Technical Data |
YX5210H00-40 | ||
| ■ Output Characteristics | SPDT On Delay | ■ Rated Current | 10A /16A |
| ■ Working Voltage |
Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC 12- 240V, AC/DC 24- 240V |
■ Time Range |
0.1S~10D |
| ■ Set tolerance | 10% | ■ Repeat accuracy | 2% |

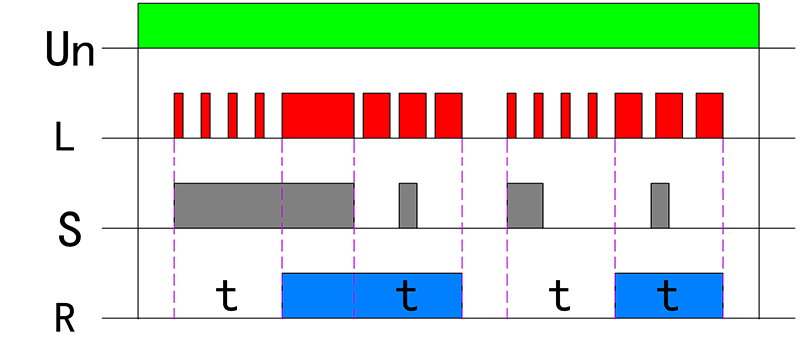

When the relay Un is energized:
When the S control terminal connects, output contact R starts the delay. After a delay of t, R closes. When the S control terminal disconnects, R remains closed and opens after a delay of t. If the S control terminal disconnects before the delay time t is completed, R closes after the delay of t and then opens again after the delay of t. The above actions repeat.
Mode Characteristics:
● S triggers on both the rising and falling edges.
● Delay cannot be reset.
● Can be triggered again to start.
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Double Trigger Single Time Delay Time Relay Supplier and Wholesale YOSHINE Double Trigger Single Time Delay Time Relay Company. YOSHINE's products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client's requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
