| ■ Technical Data |

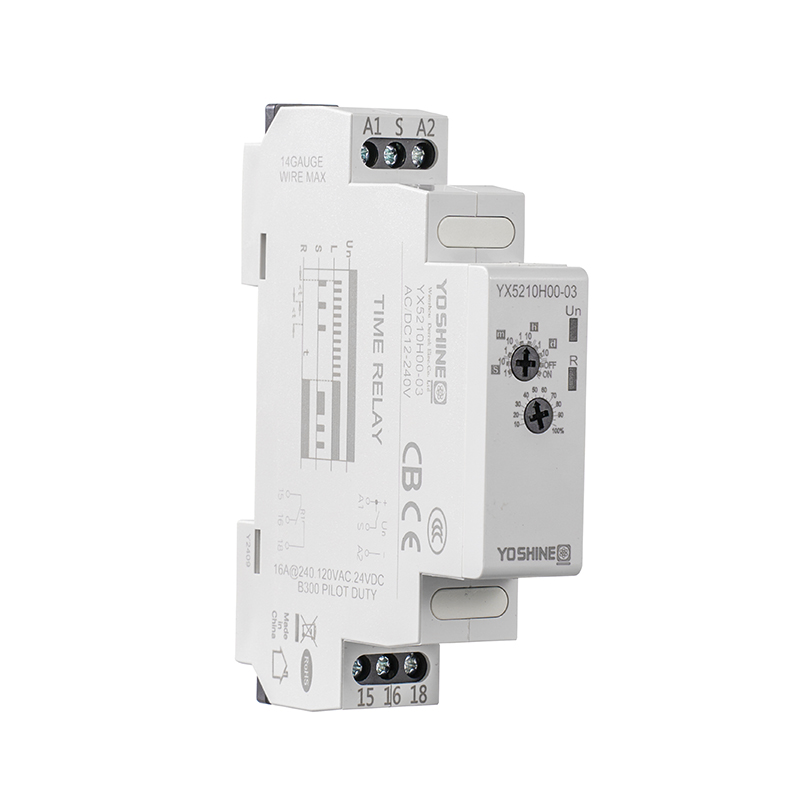

YX5210H00-03 | ||
| ■ Output Characteristics | SPDT On Delay | ■ Rated Current | 10A /16A |
| ■ Working Voltage |
Single Voltage: AC12V, AC24V, AC110V, AC220V, DC12V, DC24V Wide Voltage: AC/DC 12- 240V, AC/DC 24- 240V |
■ Time Range |
0.1S~10D |
| ■ Set tolerance | 10% | ■ Repeat accuracy | 2% |

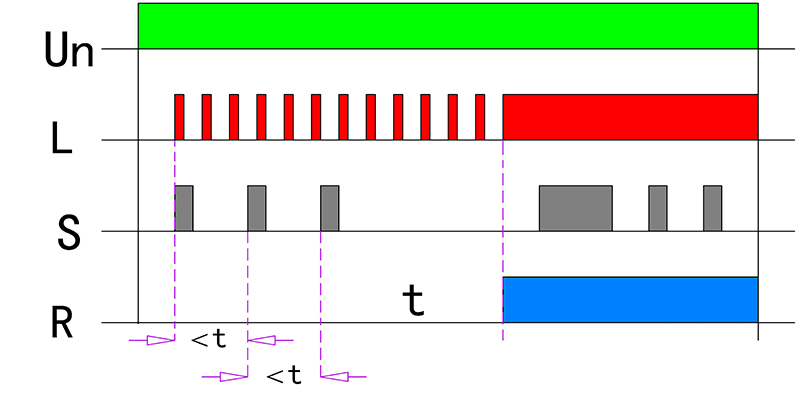

When relay Un is powered on:
S control terminal connected: Delay starts. After delay t, output contact R closes. If the S control terminal reconnects during delay t, delay t resets and restarts. Further triggers are invalid.
Mode Characteristics:
● Trigger delay on S rising edge
● Delay can be reset
● Cannot be triggered again
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Single Trigger Single Time On Delay Time Relay Supplier and Wholesale YOSHINE Single Trigger Single Time On Delay Time Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
