| ■ Technical Data |
YX741FAA01 |
■ Monitoring Type | 3P4W | ||||||
| ■ Output Characteristics | SPDT | ■ Working Voltage | AC127-265V | ||||||
| ■ Frequency | 50/60Hz | ■ Over Voltage | ≤30％ | ||||||
| ■ Under Voltage | ≤30％ | ■ Protection Delay | 3S | ||||||
| ■ Hysteresis Voltage | - | ■ Recovery Delay | 3S | ||||||
| ■ Phase Sequence | √ | ■ Phase Failure | √ | ||||||
| ■ Asymmetrical Voltage | 5~40％ | ■ Response Time of Relay | 0.5S | ||||||
| ■ Contact Rating | 8A/250VAC | ■ Ambient Temperature | -10°C~+55°C | ||||||
| ■ Setting Tolerance | - | ■ Repeatability | - | ||||||
| ■ Temperature Error | ±2% MAX | ||||||||

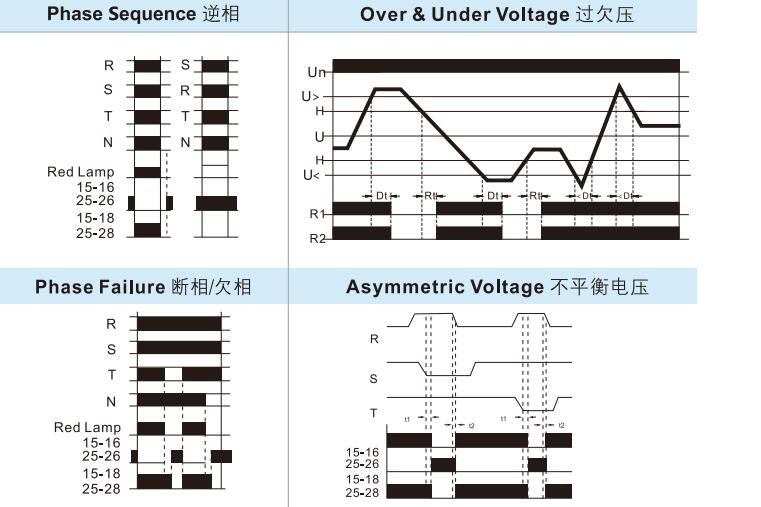

Three-phase Four-wire Protection Relay: Features overvoltage, undervoltage, phase failure, phase error, and imbalance protection. Overvoltage and undervoltage settings, along with action recovery delay, can be set independently by the user. When faults occur, the relay disconnects the load and monitors the voltage, reconnecting when the parameters normalize. Ideal for protecting downstream electrical equipment, with universal voltage support and detailed fault indicators.
