| ■ Technical Data |

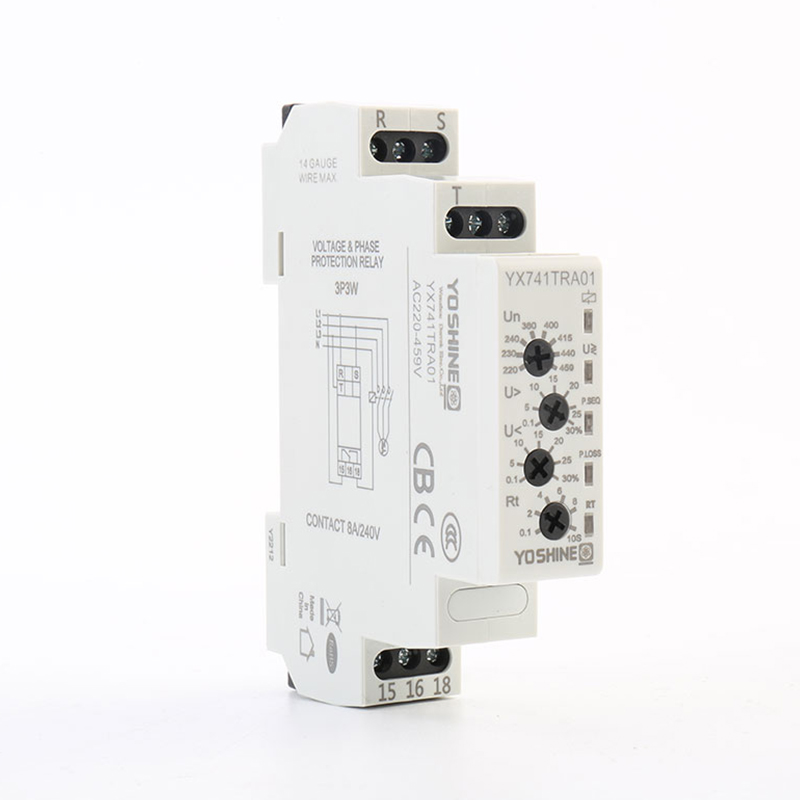

YX741TRA01 |
■ Monitoring Type | 3P3W | ||||||
| ■ Output Characteristics | SPDT | ■ Working Voltage | 220-459VAC | ||||||
| ■ Frequency | 50/60Hz | ■ Over Voltage | ≤30 | ||||||
| ■ Under Voltage | ≤30 | ■ Protection Delay | 3S | ||||||
| ■ Hysteresis Voltage | - | ■ Recovery Delay | 0.1-10S | ||||||
| ■ Phase Sequence | √ | ■ Phase Failure | √ | ||||||
| ■ PTC Protection |
- | ■ Asymmetrical Voltage | 15％ | ||||||
| ■ Response Time of Relay | 0.1S | ■ Contact Rating | 8A 250VAC | ||||||
| ■ Ambient Temperature | -10°C~+55°C | ■ Setting Tolerance | ±10% MAX | ||||||
| ■ Repeatability | ±2% MAX | ■ Temperature Error | ±2% MAX | ||||||

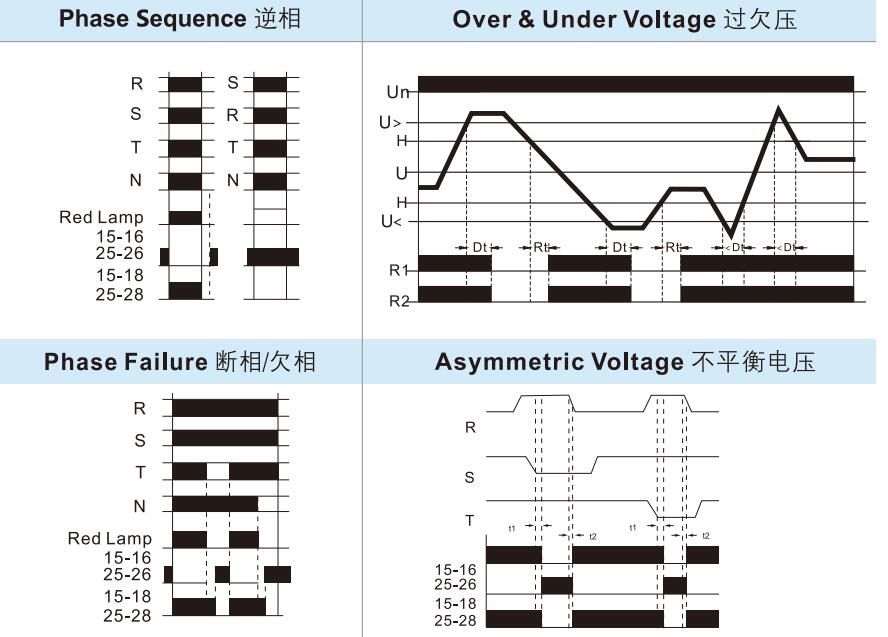

Three-phase Three-wire Protection Relay: Features overvoltage, undervoltage, phase failure, phase error, and imbalance protection. The overvoltage and undervoltage settings, as well as action recovery delay, can be independently configured by the user. When voltage faults, phase failure, or phase error occur in the three-phase line, the relay automatically disconnects the load. Once all parameters return to normal, it automatically reconnects. Ideal for protecting downstream equipment in three-phase distribution lines, with universal operating voltage for global use and clear fault indicators.
