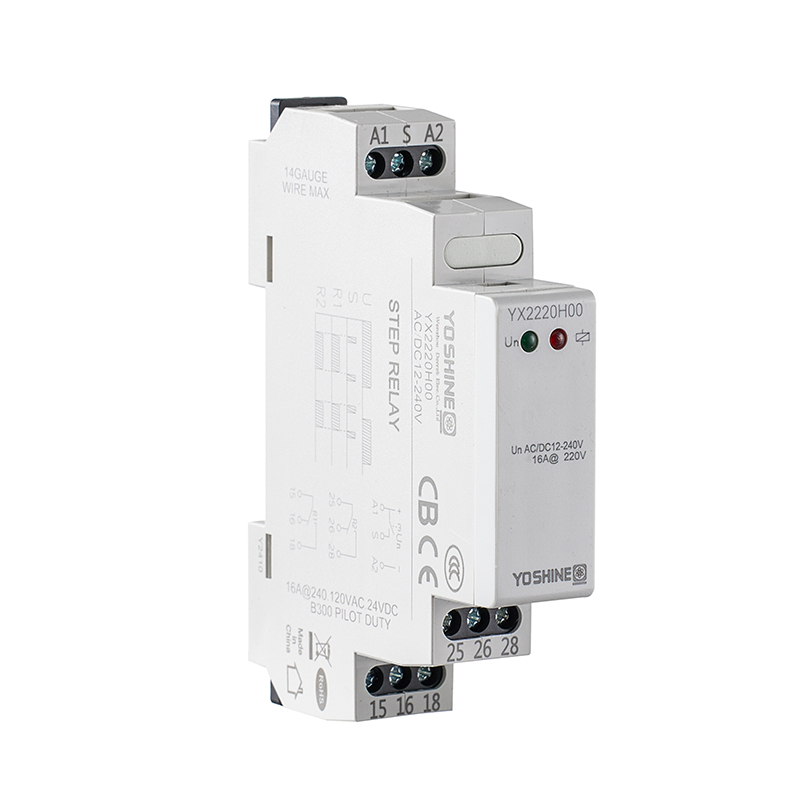

| ■ Characteristics | Bistable | ■ Output Characteristics | DPDT |
| ■ Operating Voltage |
Univoltage: 12V/24V/110V/220VAC; 12V/24VDC Wide Voltage: 24-240VAC/DC; 12-240VAC/DC |
■ Contact Capacity | 5A/16A |
| ■ Installation | Guide Rail Mounting |

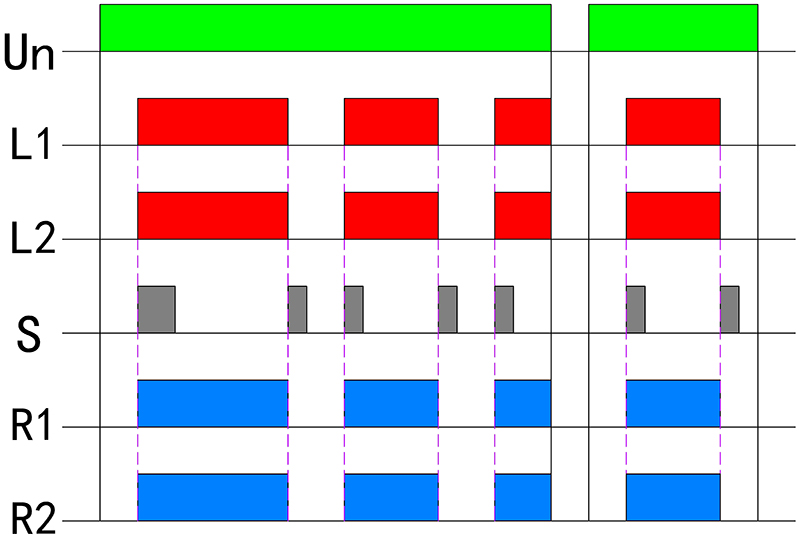

When relay Un is powered:
1. When control terminal S is connected, output contacts R1 and R2 close;
2. When S is connected again, both R1 and R2 open. This cycle continues until relay Un is powered off. Every time terminal S is connected, the contact state immediately changes—alternating between on and off.
Wenzhou Benow Electric Co.,ltd. is an OEM/ODM YOSHINE Monostable Output Relay DPDT Synchronization AC12-240V Din Rail Stepping Relay Supplier and Wholesale YOSHINE Monostable Output Relay DPDT Synchronization AC12-240V Din Rail Stepping Relay Company. YOSHINE's products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client's requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
