A single-channel WiFi relay is a smart device that allows you to control electrical appliances remotely via a WiFi connection. It can be programmed to turn devices on or off at specific times or in response to certain triggers. This device is compatible with various smart home ecosystems and can be controlled through a mobile app, offering convenience and energy-saving benefits.
|
Technical Data |
YX1010H22 |
||
|
Output characteristic |
SPDT |
||
|
Operating voltage |
AC/DC110-240V |
||
|
WiFi Characteristic WiFi |
Standard |
IEEE 802.11b/g/n |
|
|
Working Mode |
STA/AP/STA+AP |
||
|
Wireless Security Support |
Supports WEP, WPA/WPA2, WPA/WPA2 PSK (AES) and WPA3 security modes |
||
|

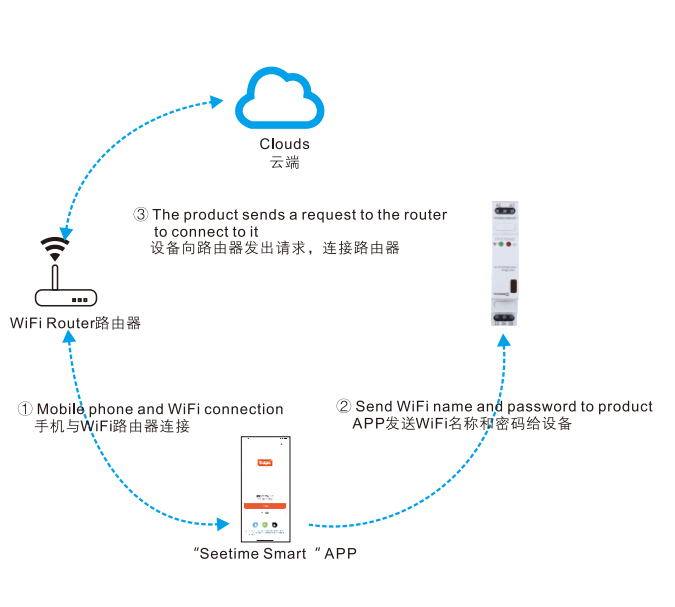

Support SmartConfg and AP two kinds of distribution methods (including Android and IOS devices) |
|||
|
WiFi RF Parameters (Typical Values) WiFi |
Working Frequency |
2.412-2.484GHz |
|
|
Transmit Power |
Bluetooth mode supports 6 dBm transmit power Maximum +16 dBm output power in 80211b mode |
||
|
Wireless Transmission Distance |
General Indoor: 45 M, Outdoor: 150 M(Note: It depends on the environment.) |
||
|
Standby Power Consumption |
Less than 1.5W |
||
|
Working Condition |
Working Temperature |
-10C-60℃ |
|
|
Storage Temperature |
Normal Temperature |
||
|
Working Humidity |
5%-95%(Non-condensing) |
||
|
Physical Parameter |
Antenna Type |
Built-in Antenna |
|
|
Rated Current |
16A |
||
|

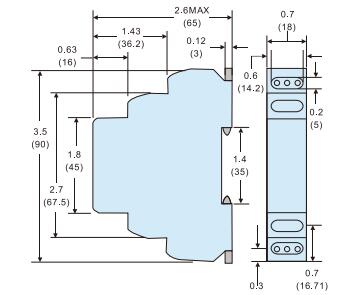

Dimensions：in(mm) |
Wiring Diagrams |

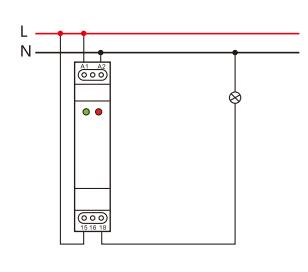

Product Wiring Diagram |
|
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |

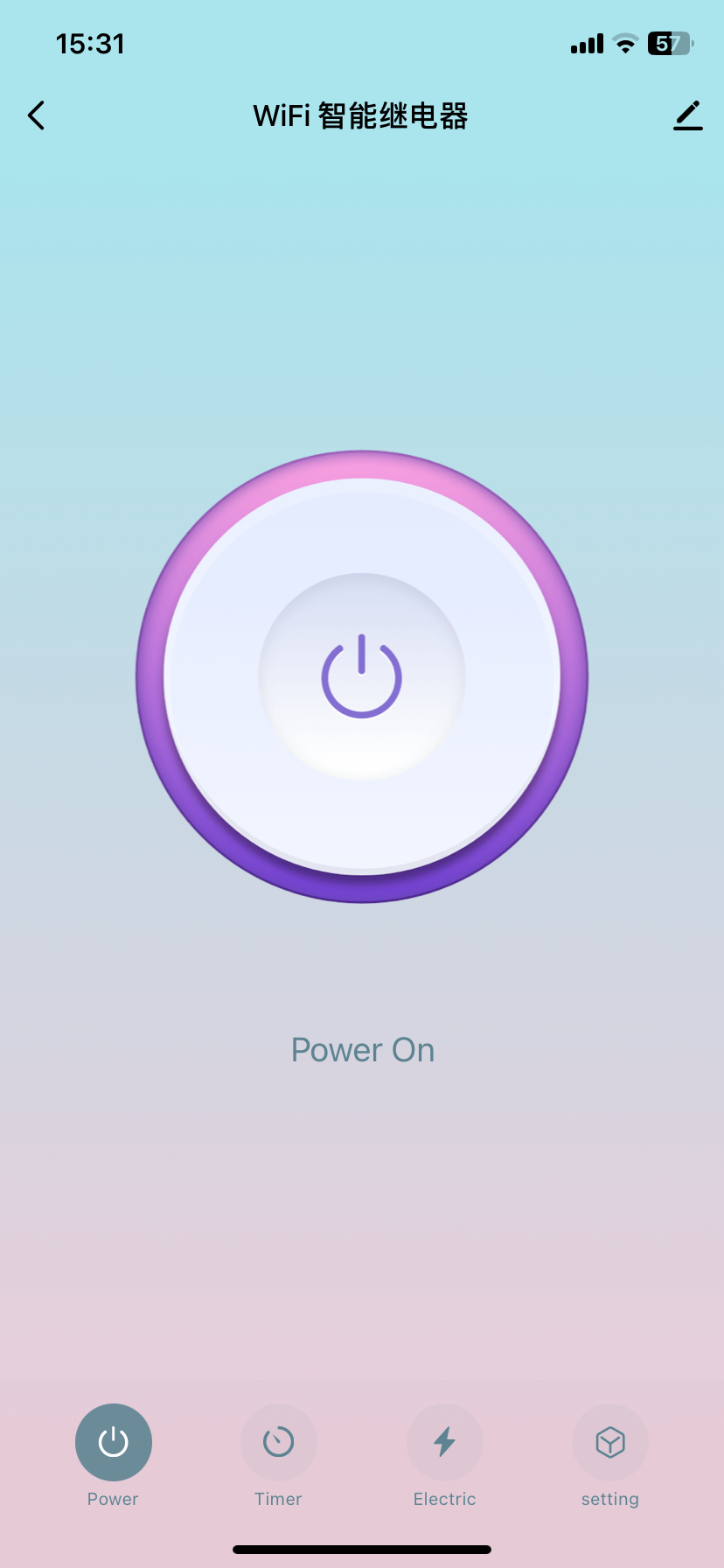

| Manual switch: Click the button switch on the control page to turn the load on or off. Automatic timing: Countdown, timing, cycle timing, random timing, electric switch, and astronomical timing. |

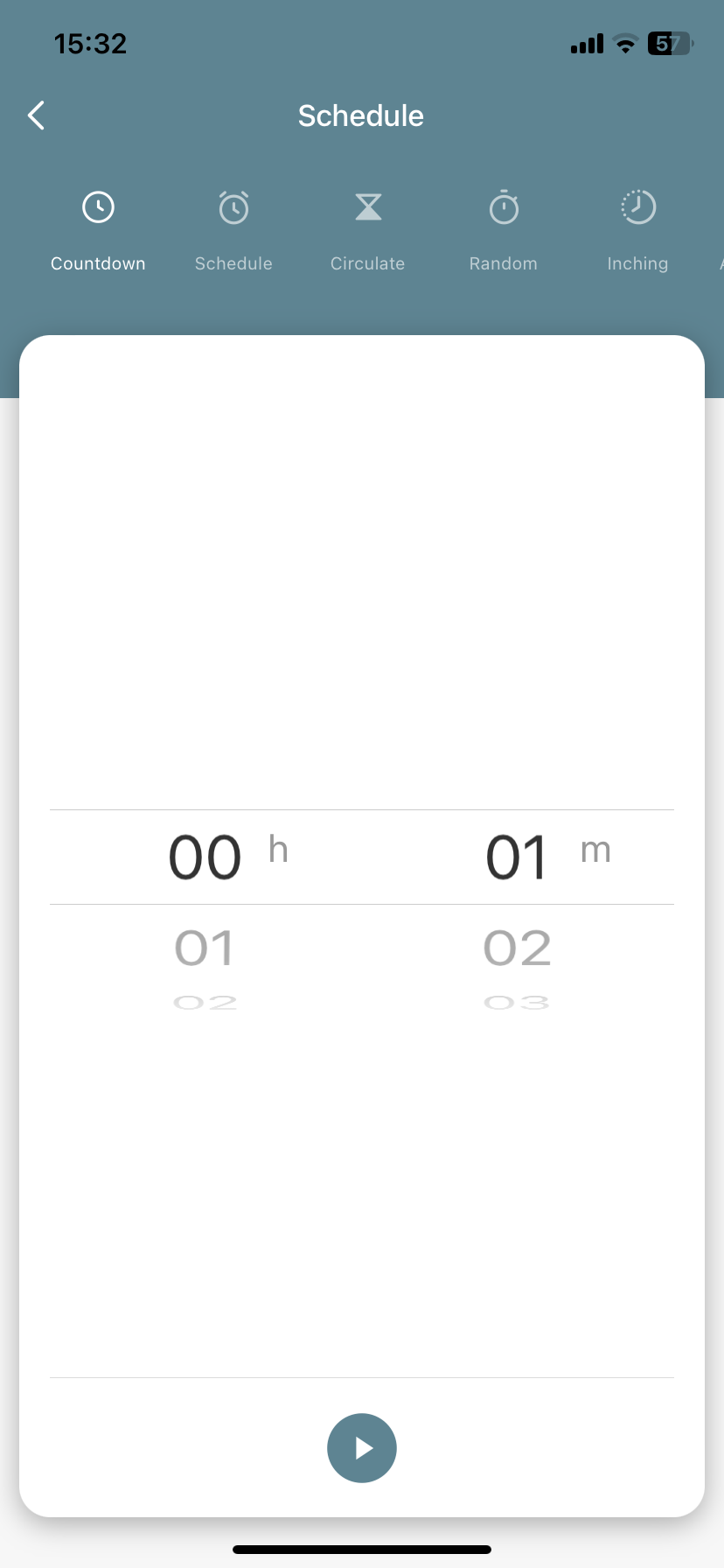

Countdown: After the set time, the countdown starts. When the time is up, switch the switch state. |

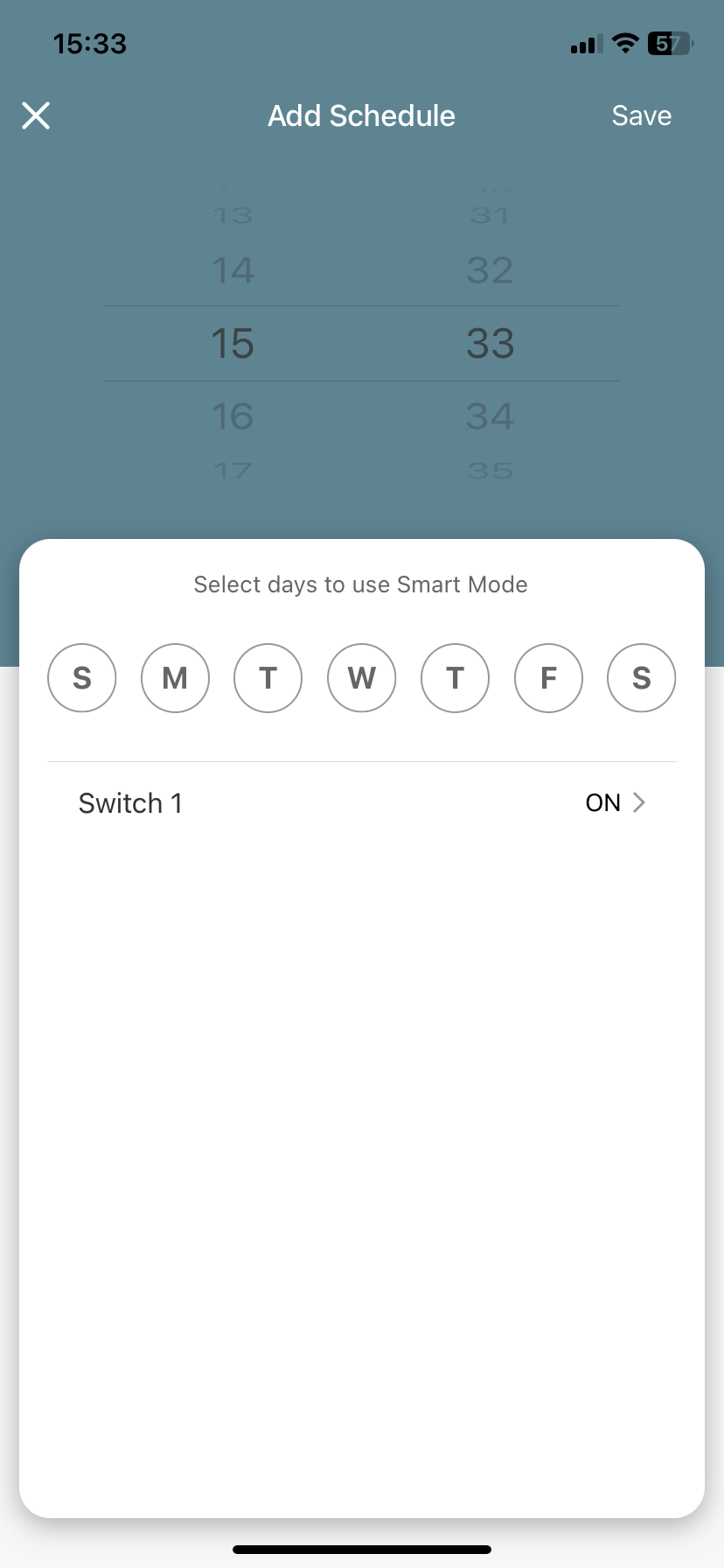

Timing: At a specified time point, turn on/off the load. |

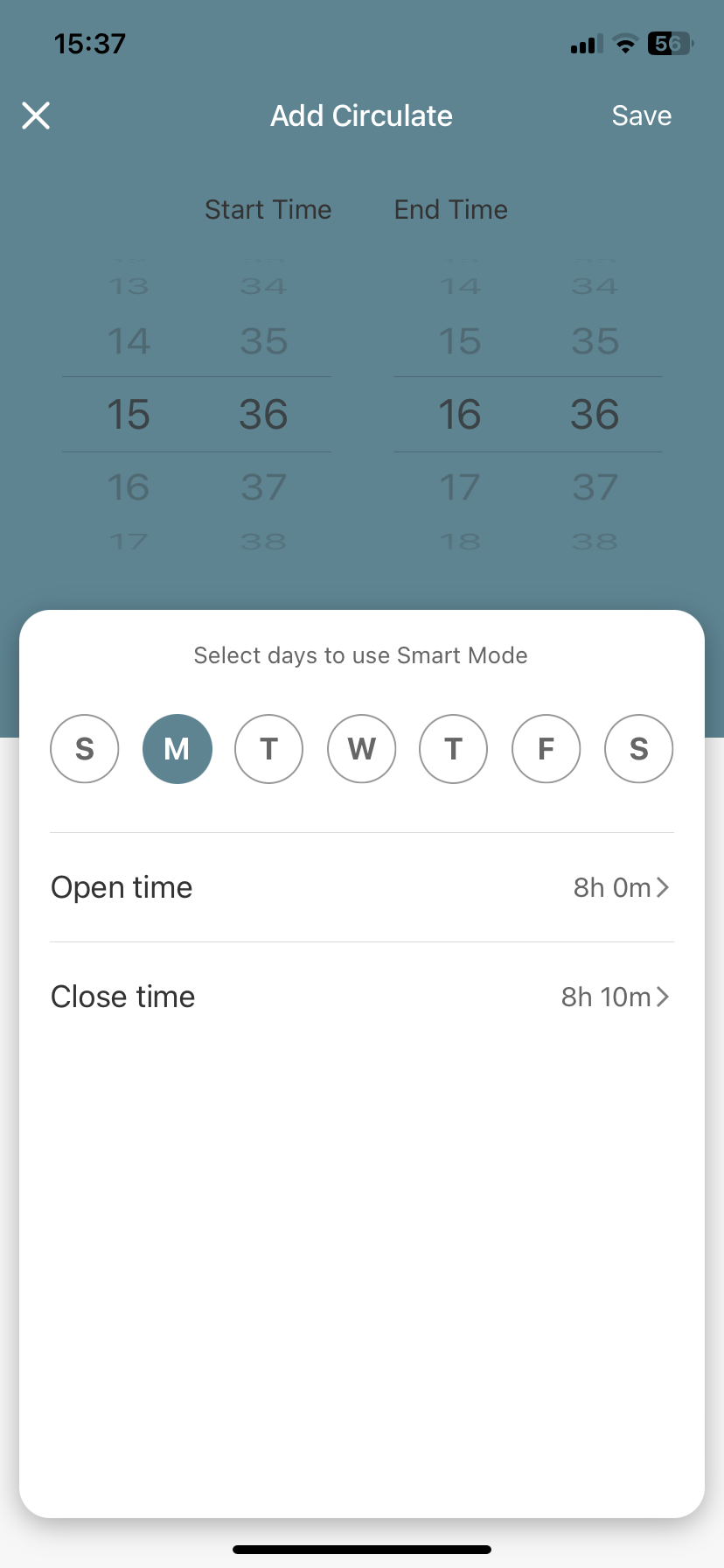

Cycle Timing: Within the specified time range, repeatedly turn on and off the load, the duration can be set. |

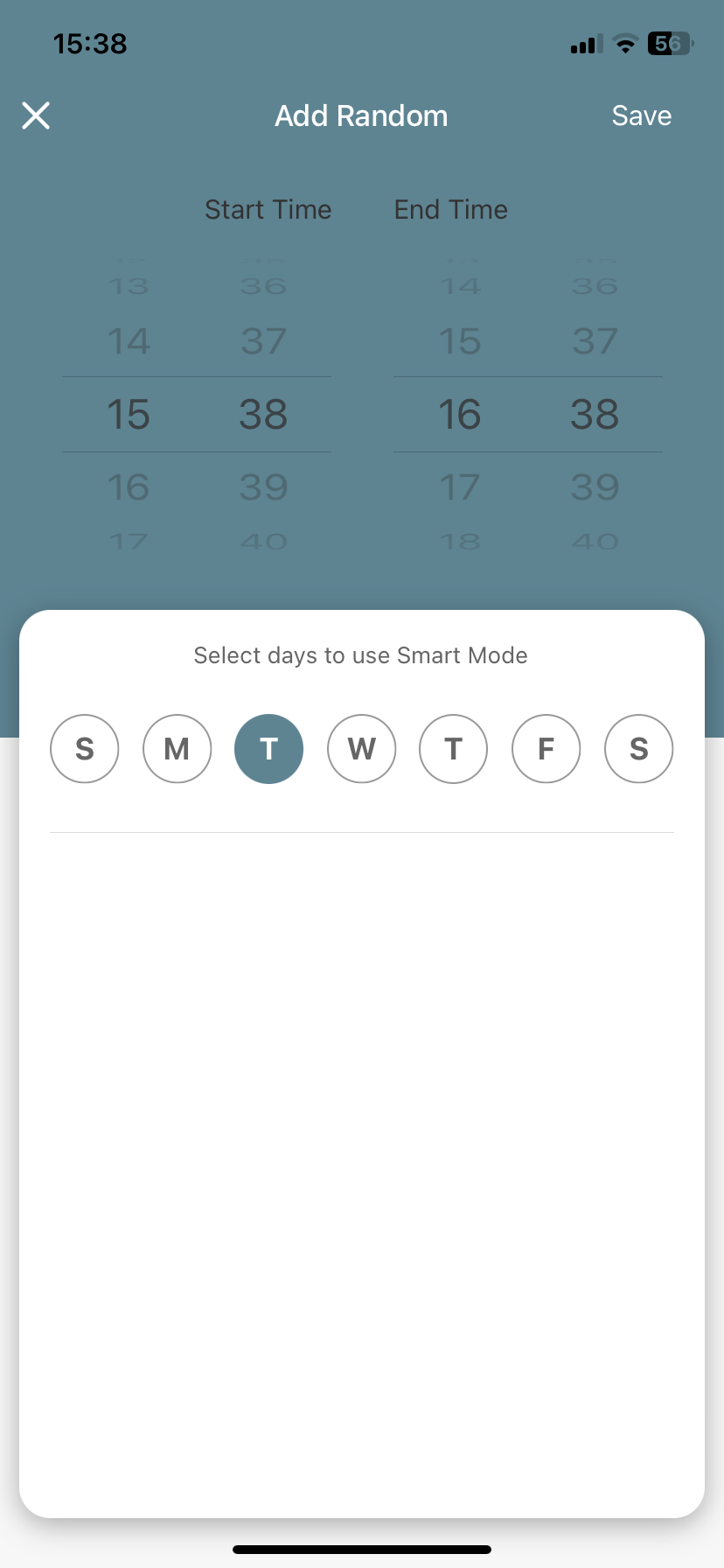

Random Timing: Within half an hour before and after the specified time point, the load is randomly turned on/off. |

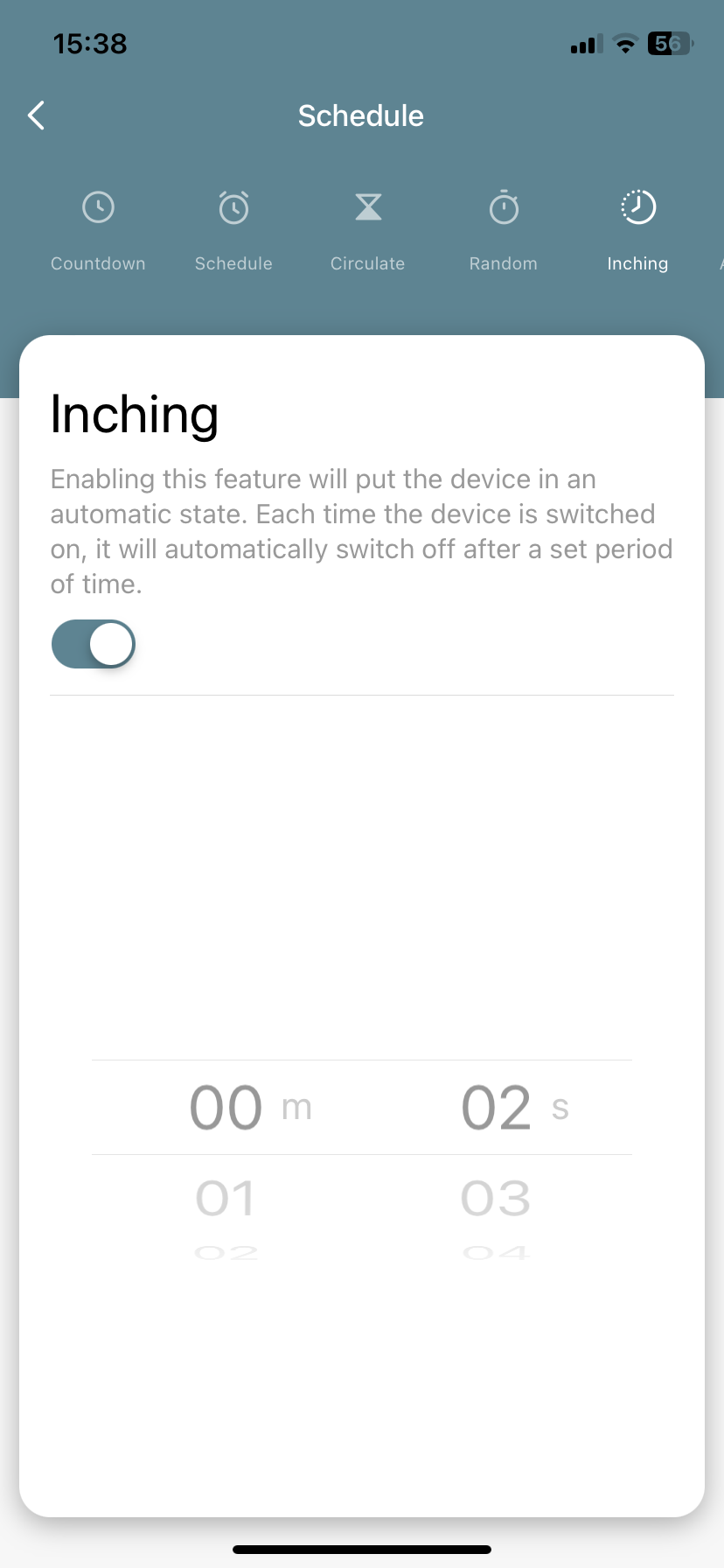

Inching Switching: Set the execution switch, turn it on on the control page, and turn it off when the time is up. |

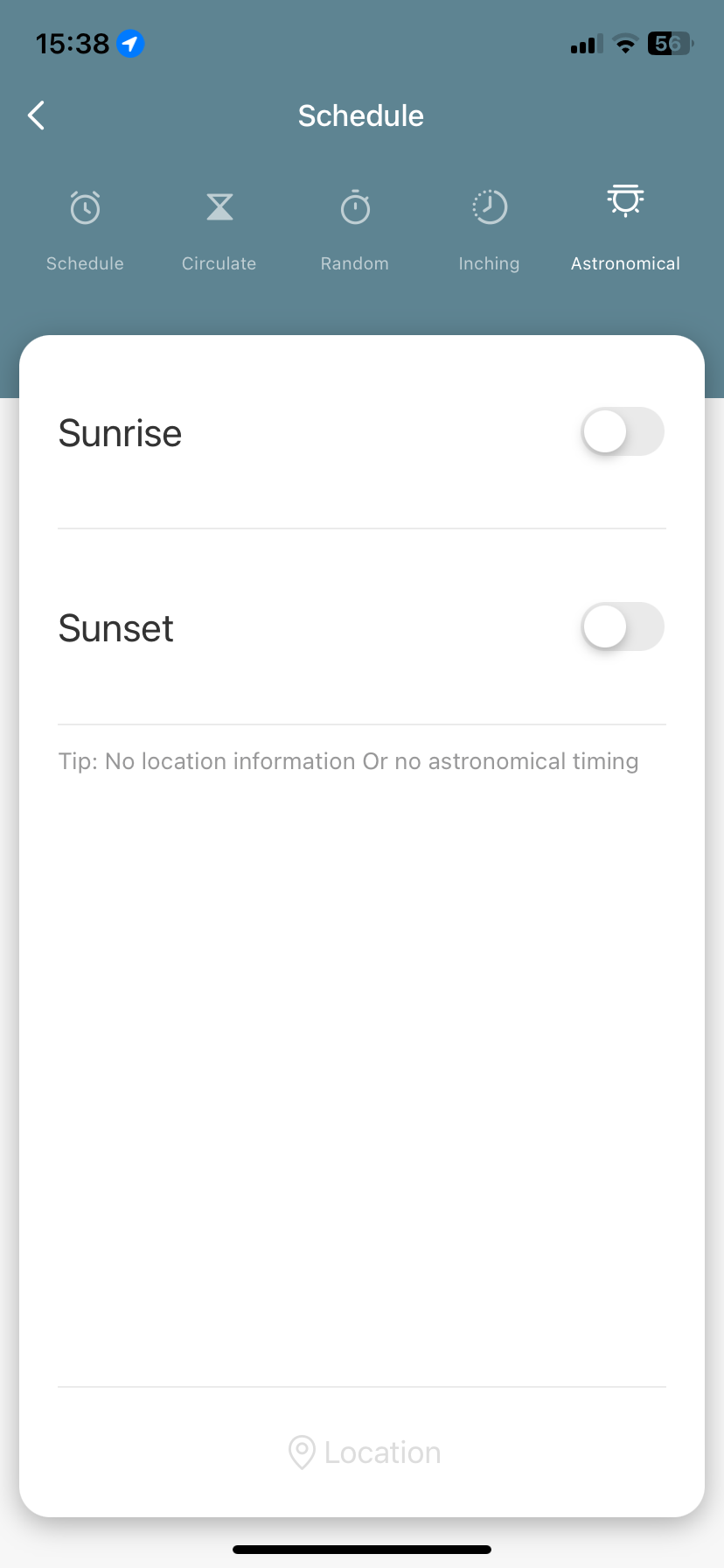

Astronomical Timing: Turn on/off the load according to the local sunrise and sunset times. |
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Built-in Antenna AC/DC85-240V Single Channel Wifi Relay Supplier and Wholesale YOSHINE Built-in Antenna AC/DC85-240V Single Channel Wifi Relay Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
