| ■ Technical Data |

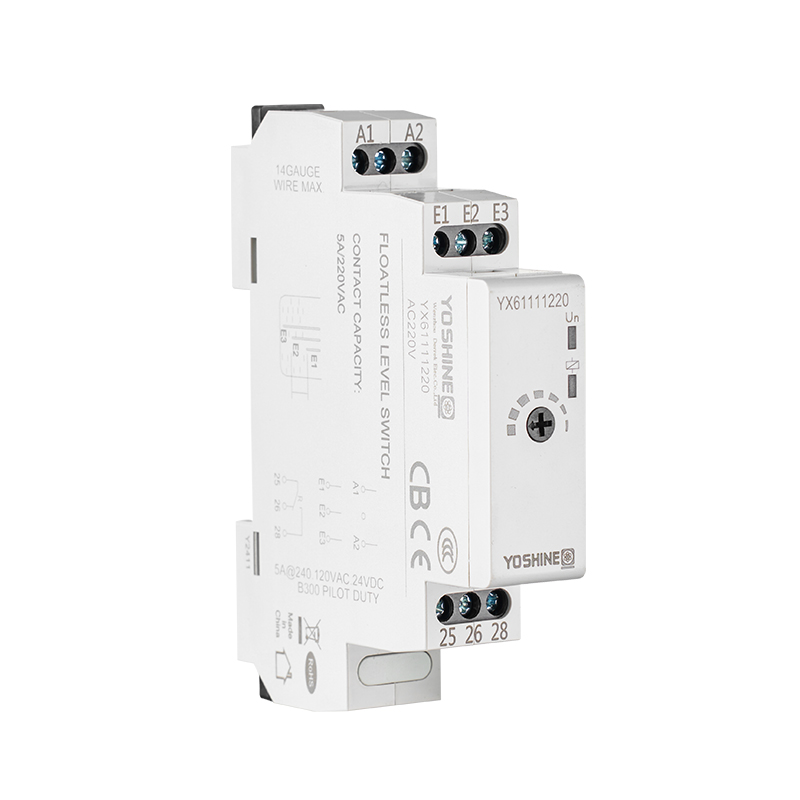

YX61111220 | ||
| ■ Output Characteristics | SPDT | ■ Rated Current | 5A |
| ■ Working Voltage |
Single Voltage: AC110V, AC220V, AC24V, DC24V Wide Voltage: AC/DC 24-240V |
■ Sensitivity range |
Adjustable |
| ■ Delay range |
- | ■ Applicable Environment |
Used for domestic water systems, sewage treatment systems and special liquid supply systems. |
The three-wire liquid level control mode is suitable for general water purification and sewage.
| Mode | Wiring Diagram & Operation Diagram | Schematic Description | |

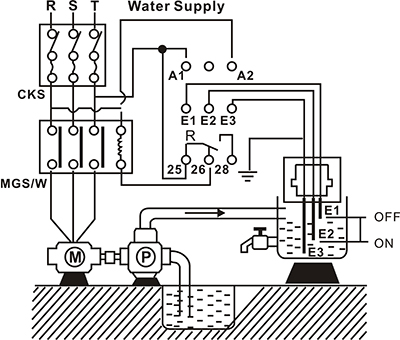

| Water Supply Wiring Diagram |  |
When water reaches E1, the motor stops automatically and when water drains below E2, the motor operates automatically When motor operations, Lamp is OFF. |
|

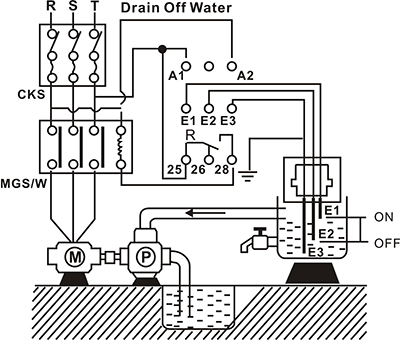

| Diainage Wiring Diagram |  |
When water reaches E1, motor Start. Automatically and when water drains below E2, motor stop automatically. When motor operations, Lamp is ON. |
|
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Single Function Sensitivity Adjustable Liquid Level Relay Supplier and Wholesale YOSHINE Single Function Sensitivity Adjustable Liquid Level Relay Company. YOSHINE's products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client's requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
