| ■ Technical Data | YX743FPS220 | ■ Input Voltage | 3P4W 220VAC L/N |
| ■ Output Voltage | Single Phase 220VAC L/N | ■ Working Frequency | 45-65 Hz |
| ■ Over Voltage | 230-280VAC | ■ Under Voltage | 160-210VAC |

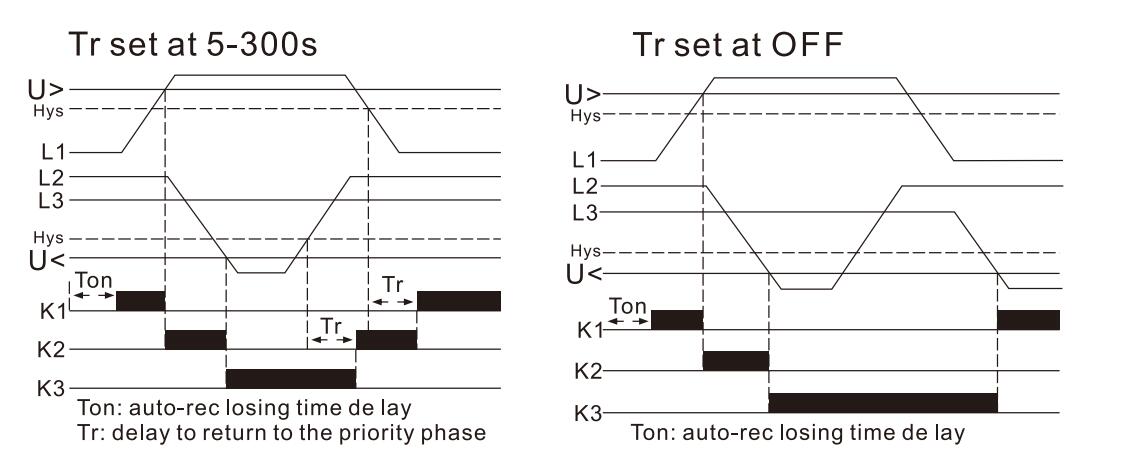

| ■ Adjustable reset delay, Ton | 1-600S | ■ Returns The Recovery Delay Time Adjustment Range For The Priority Phase, Tr | 5- 300S, OFF (Off priority phase) |
| ■ Fixed Switch (de-energization) Delay For Umin | 12S | ■ Switch Delay To Reserve Phases | ≤ 0.2S |
| ■ Voltage Hysteresis | 6VAC | ■ Accuracy | ± 2VAC |
| ■ Maximum Switching Current Of Output Contacts | 16A AC1 | ■ Terminal Wire Capacity | 14AWG (2.1mm2) |
| ■ Power Consumption (loaded) | ≤ 3VA | ■ Life Of Output Contacts | Electrical life 1×105 Mechanical life 1×106 |
| ■ Dielectric Strength | Between housing and contacts: 2500VAC | ■ Ambient Air Temperature Around The Device | Operation: -20 to +55℃ Storage: -30 to +70℃ |
The YX743FPS220 automatic electronic phase switch is designed to supply an industrial/ appliance single-phase 220V/50Hz load from three-phase four-wire mains 3x380+N in order to maintain an uninterrupted power supply of essential single-phase loads and protect them against unallowable voltage variations in the mains. To this end a single phase load is connected into the three-phase mains with the interposition of the YX743FPS220. According to voltage presence and voltage quality on phases, the YX743FPS220 will automatically select the optimum phase and switch the single phase load supply to this phase.
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Automatic Electronic Phase Sequence Relay Switch Supply Industrial Household Appliance Supplier and Wholesale YOSHINE Automatic Electronic Phase Sequence Relay Switch Supply Industrial Household Appliance Company. YOSHINE’s products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client’s requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
