| ■ Characteristics | Bistable/Monostable | ■ Output Characteristics | SDPT |
| ■ Operating Voltage |
Univoltage: 12V/24V/110V/220VAC; 12V/24VDC Wide Voltage: 24-240VAC/DC; 12-240VAC/DC |
■ Contact Capacity | 5A/16A |
| ■ Installation | Guide Rail Mounting |

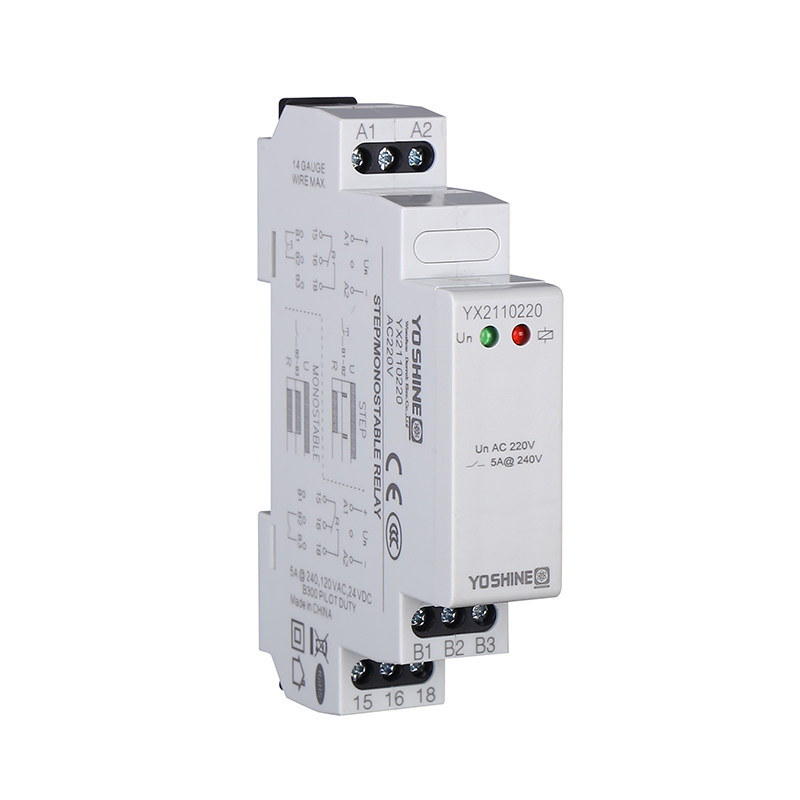

Dual-Function Relay
A switch can be connected between control terminals B1 and B2, or B2 and B3, to output in monostable or bistable mode to achieve different control purposes.
When relay Un is powered:

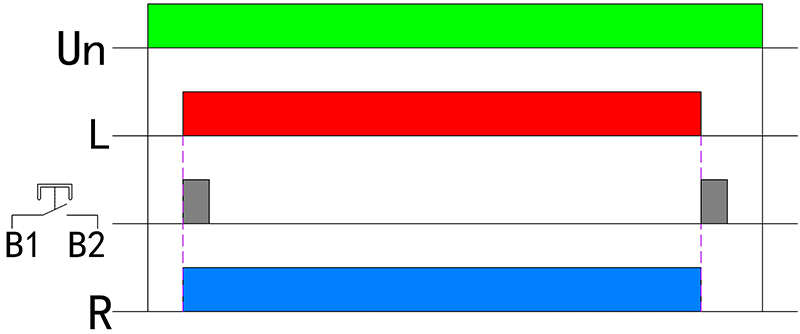

Bistable mode: When control terminals B1 and B2 are connected, output contact R closes. When B1 and B2 are connected again, R opens. This cycle continues until relay Un is powered off.

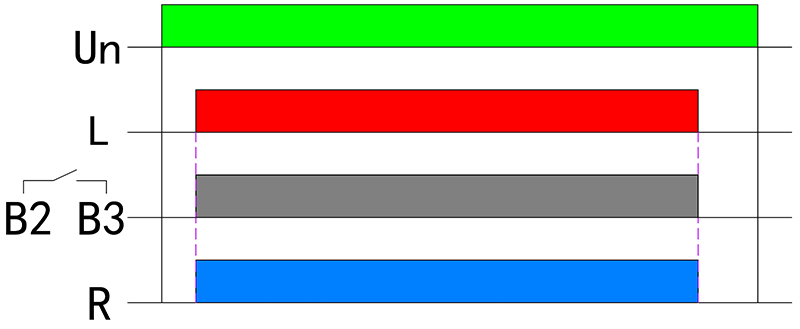

Monostable mode: When control terminals B2 and B3 are connected, output contact R closes. When B2 and B3 are disconnected, R opens.
 |
 |
Wenzhou Derrek Electric Co., Ltd. is an OEM/ODM YOSHINE Monostable/Step Relay SDPT 220V Din Rail Stepping Relay Supplier and Wholesale YOSHINE Monostable/Step Relay SDPT 220V Din Rail Stepping Relay Company. YOSHINE's products can be divided into two categories:
1. Products that manage electronic control processes (Step Relay, Time Relay, Switching Power Supply, Floatless Level Switch, etc.).
2. Products that protect equipment (e.g. motors) from voltage and current failures (Voltage Protection Relay, Current Monitoring Relay). OEM service is offered according to the client's requirements.
YOSHINE has made its contribution to the development of our society and the global intelligence industry with the mission of “Made for Connection”.
The company currently has more than 50 employees, including 7 professional technicians and 2 engineers.
We have our own manufacturing plant which covers an area of 12000 square meters.
Our monthly production capacity is over 100,000 pcs, which can meet the needs of different clients.
