New Product｜Automatic Electronic Phase Switch YX743FPS220

Product Introduction

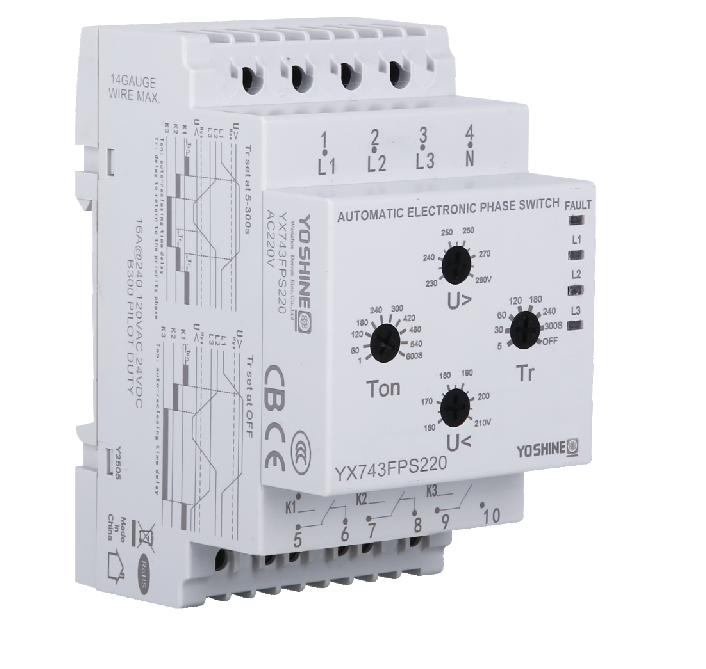

The YX743FPS220 automatic electronic phase switch is designed to power industrial/home appliances. The three-phase four-wire mains 3x380+N supplies single-phase 220V/50Hz loads to maintain uninterrupted power supply to important single-phase loads and protect them from impermissible voltage variations in the mains supply. To do this, connect the single-phase load to the three-phase supply by plugging in a YX743FPS220. Based on the voltage presence and voltage quality of each phase, the YX743FPS220 will automatically select the best phase and switch the single-phase load power to that phase.


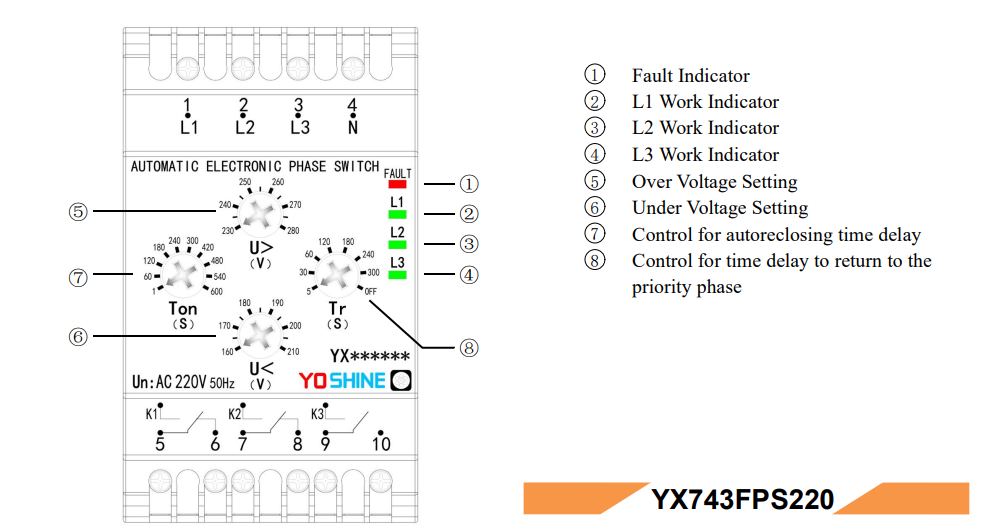

01Model&Explanation

02Technical Data

■ Technical DataYX743FPS220

■ Input Voltage 3P4W 220VAC L/N

■ Output VoltageSingle Phase 220VAC L/N

■ Working Frequency45-65 Hz

■ Over Voltage230-280VAC

■ Under Voltage160-210VAC

■ Adjustable reset delay, Ton1-600S

■ Returns The Recovery Delay Time Adjustment Range For The Priority Phase, Tr5- 300S, OFF (Off priority phase)

■ Fixed Switch (de-energization) Delay For Umin 12S

■ Switch Delay To Reserve Phases≤ 0.2S

■ Voltage Hysteresis6VAC

■ Accuracy± 2VAC

■ Maximum Switching Current Of Output Contacts16A AC1

■ Terminal Wire Capacity14AWG (2.1mm2)

■ Power Consumption (loaded)≤ 3VA

■ Life Of Output Contacts    Electrical life 1×105  Mechanical life 1×106

■ Dielectric Strength Between housing and contacts: 2500VAC

■ Ambient Air Temperature Around The Device  Operation: -20 to +55℃  Storage: -30 to +70℃

03Characteristic

1. Microcomputer Protection

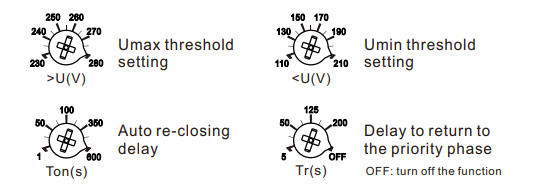

2. Parameters Are Set Via Knobs

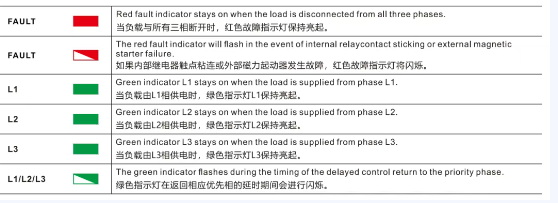

3. Indicator light Control

Wiring Diagram

01Wiring Diagram

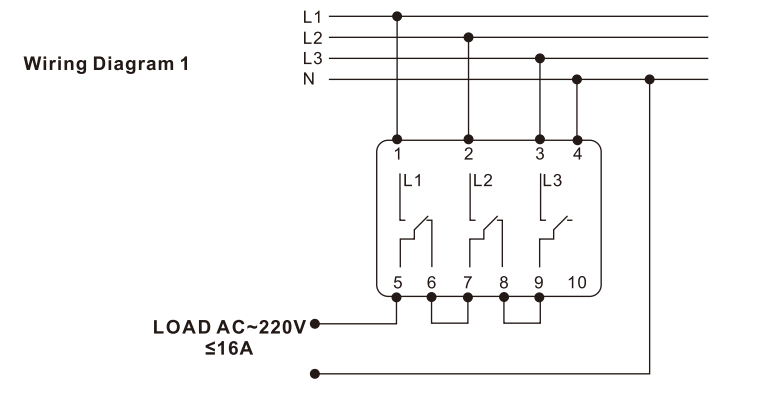

Wiring for loads up to 16A (use jumper between terminals 6-7 and 8-9)

02Wiring Diagram 2

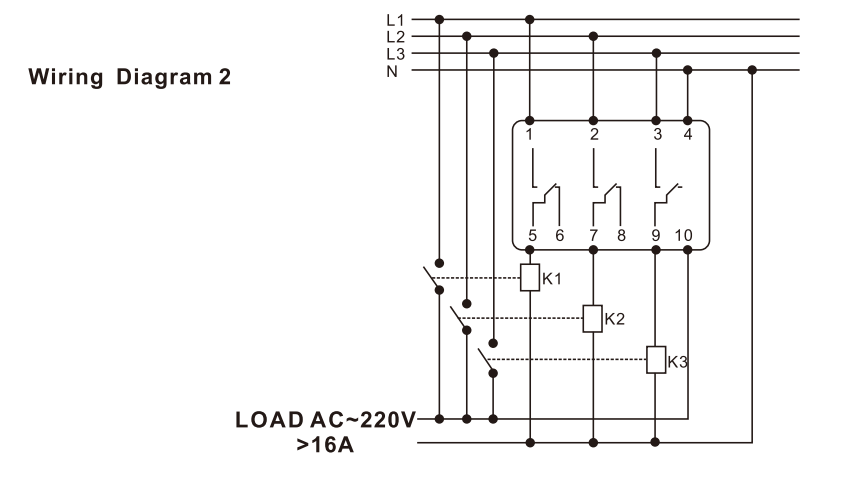

When the load exceeds 16A, the auxiliary connection of the magnetic starter (remove the jumper between 6-7 and 8-9), K1, K2, K3 --- magnetic relay.

Note: If voltage is applied to terminal 10#, switching will not be performed.

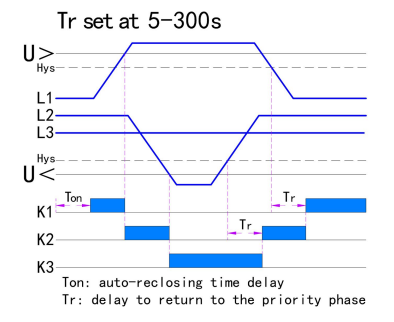

Run Chart

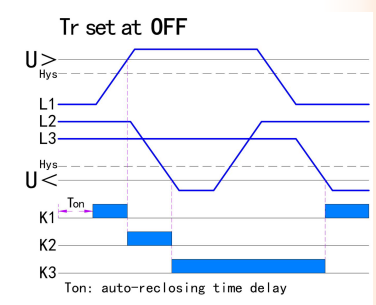

01Sst 5-300S

02Set at Off

Appliaction Areas

The core advantages of YX743FPS200 automatic electronic phase switching relay are precise phase monitoring, fast switching response and high reliability. Its applications cover many fields such as industry, energy, communications and so on.

01Industrial AutomationIn

industrial automation production lines, equipment such as motors and frequency converters have higher requirements for the stability and accuracy of the power phase. The automatic electronic phase selection relay can monitor the power phase in real time. When there is an abnormality in the phase (such as missing phase, wrong phase sequence), it can automatically switch to the correct phase to ensure normal operation of the equipment and avoid production interruption, equipment damage or product quality defects caused by phase problems.

Application scenarios: production line conveyor belt drive system, industrial robot power supply system, etc.

02New Energy Field

In scenarios such as new energy vehicle charging piles and electric vehicle charging systems, automatic electronic phase selection relays can ensure phase matching between charging equipment and the grid or vehicle power supply, improve charging efficiency and safety, and avoid charging failures or battery damage caused by phase problems.

Application scenarios: power input phase control of DC charging piles, phase matching between AC charging piles and vehicle charging interfaces, etc.

03Communmciations and Date Center

Communication base stations, data centers and other places rely on a large number of precision electronic equipment, which have extremely high requirements on power quality. The automatic electronic phase selection relay can ensure the phase stability of the power supply system, prevent equipment failure, data loss and other problems caused by phase fluctuations or abnormalities, and ensure the normal operation of communications and data centers.

Application scenarios: server power systems, communication equipment power supply lines, UPS (uninterruptible power supply) systems, etc.

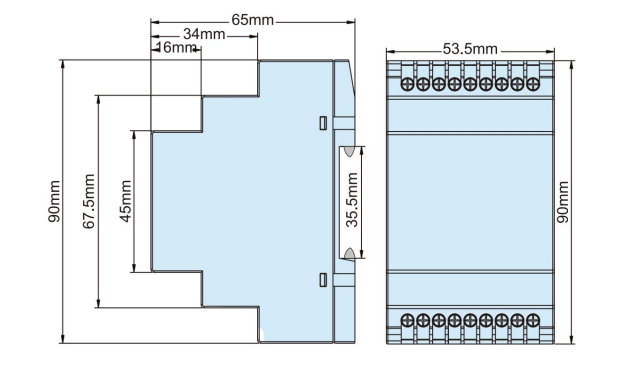

Dimensional Drawing
