With the rapid rise of smart infrastructure and industrial automation, the safety and stability of electrical systems have become paramount. Whether in a residential smart home or a heavy-duty manufacturing plant, managing voltage fluctuations is crucial to protecting expensive equipment. A critical component in safeguarding these systems is the voltage protection relay.
In this comprehensive guide, we will explore what voltage protection relays are, how they work, and their primary applications. We will also highlight how YOSHINE, a brand backed by nearly 20 years of engineering excellence, is defining industry standards with its advanced voltage protection solutions.

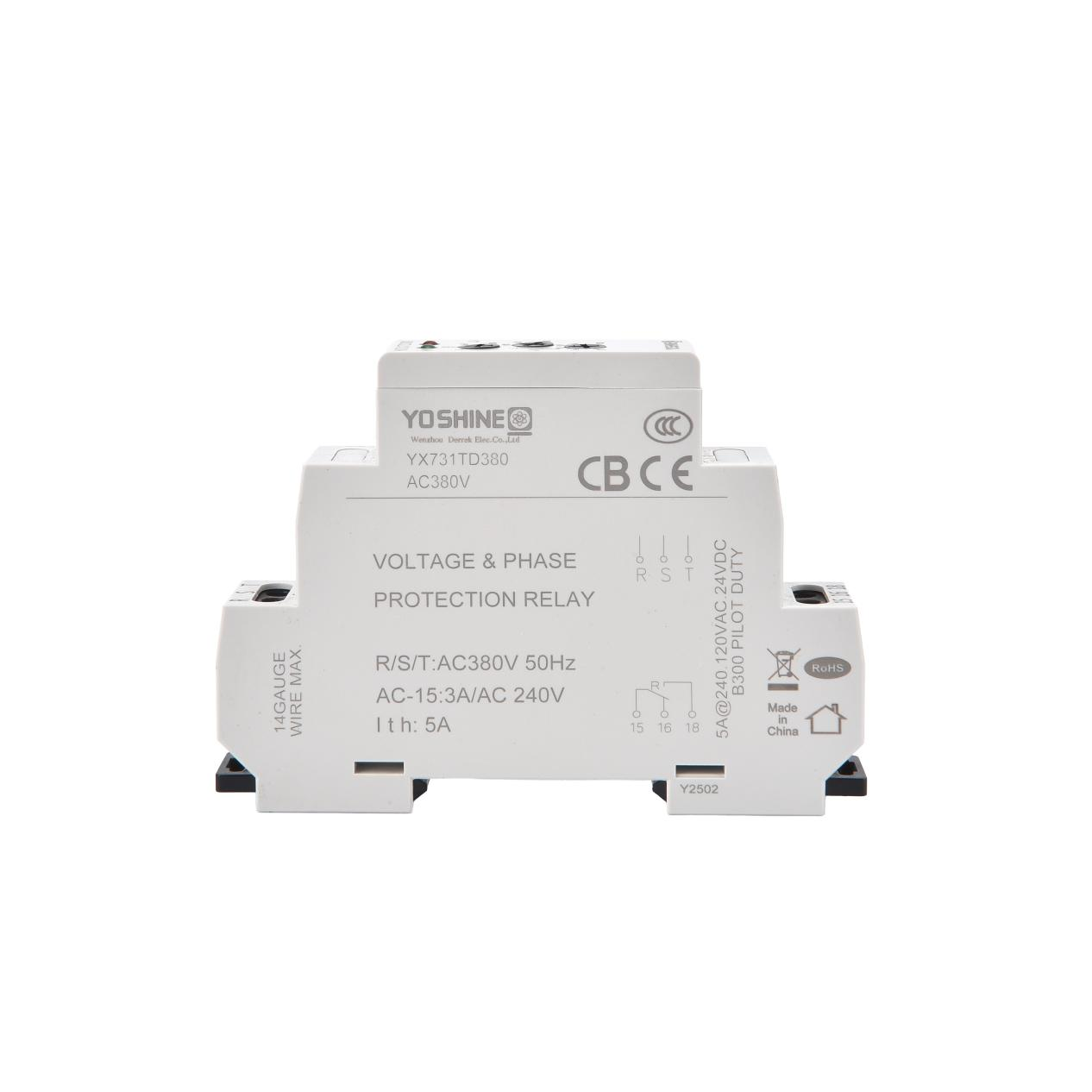

A voltage protection relay is an essential electrical device designed to protect circuits and equipment from damaging voltage conditions, including over-voltage, under-voltage, phase loss, and phase sequence errors.
It acts as an intelligent sentinel, continuously measuring the electrical parameters of a system. If it detects an anomaly that falls outside the acceptable preset range, it instantly triggers a countermeasure—such as disconnecting the circuit or sounding an alarm—to prevent catastrophic equipment failure or electrical fires.
The working principle of a modern voltage protection relay relies on a combination of precise sensing and rapid decision-making. The process can be broken down into three core stages:
Sensing Element: The relay continuously monitors incoming electrical parameters, such as voltage levels, frequency, and phase balance.
Decision-Making Element: Powered by a high-speed microprocessor, this component compares real-time data against predefined safety thresholds. If a fault (like a sudden voltage spike or phase drop) is detected, it instantly calculates the severity.
Actuating Element: Once a fault is confirmed, the actuating element sends a signal to open a circuit breaker or contactor, effectively isolating the load from the power source.
Unlike traditional fuses, modern relays offer intelligent features. For example, if the voltage returns to normal after a temporary fluctuation, advanced relays can be programmed to automatically reset, ensuring unattended equipment resumes operation safely.
Depending on the specific needs of an electrical setup, different types of relays are utilized:
Over-Voltage Relays: Trigger a shutdown when voltage exceeds the maximum safe limit, preventing insulation breakdown and electrical fires.
Under-Voltage Relays: Disconnect the circuit when voltage drops too low, protecting motors and compressors from burning out due to insufficient power.

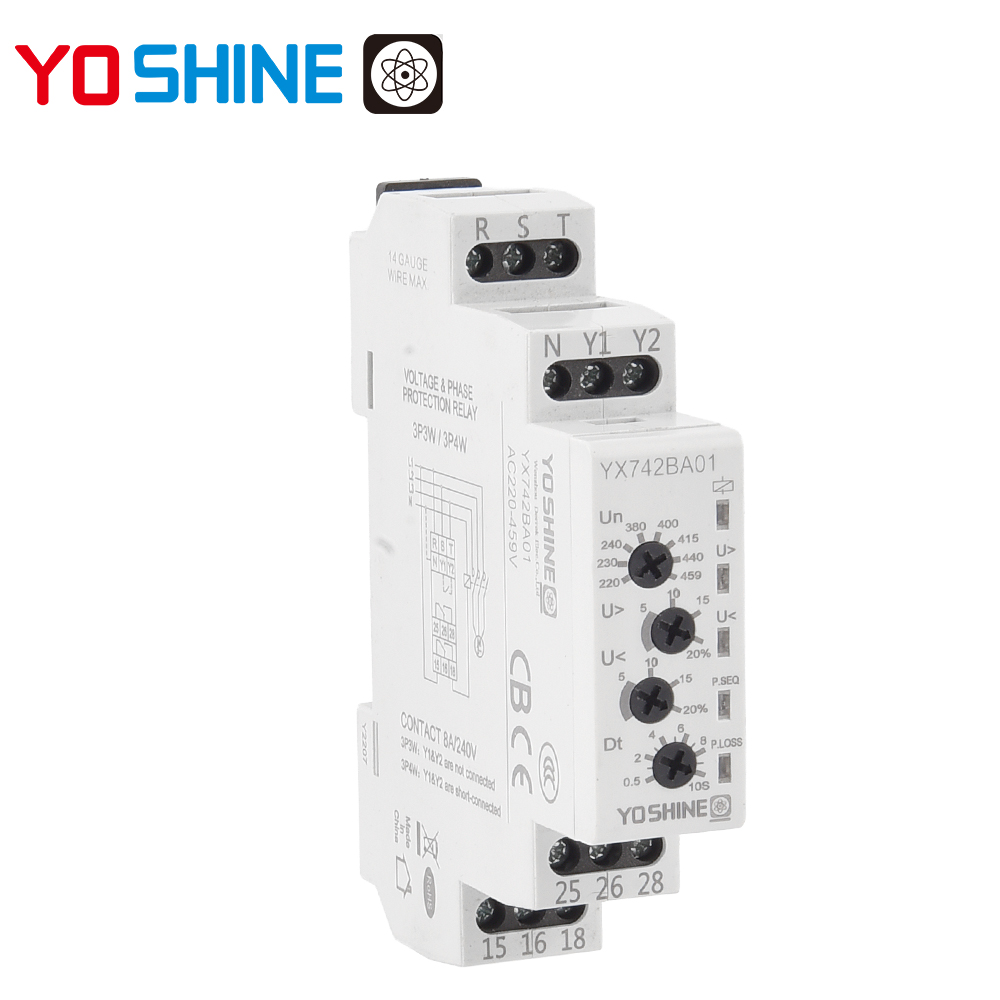

Phase Sequence & Phase Loss Relays: Crucial for three-phase systems, these prevent motors from running backward or sustaining damage if one of the power lines fails.
Voltage Unbalance Relays: Monitor the difference between three-phase voltages, protecting sensitive industrial machinery from overheating.
Voltage protection relays are versatile and indispensable across various sectors:
Industrial Manufacturing & HVAC: Protecting expensive CNC machines, conveyor belts, and HVAC compressors from power grid fluctuations and phase failures.
Water Treatment & Pumping Stations: Preventing water pumps from running dry or burning out due to voltage drops or phase loss.
Smart Buildings & Commercial Facilities: Safeguarding elevators, centralized lighting, and fire safety systems from power anomalies.
Agriculture & Renewable Energy: Ensuring the stable operation of irrigation systems, solar inverters, and generators in remote areas with unstable grids.
When it comes to protecting critical infrastructure, reliability is non-negotiable. YOSHINE, the flagship brand of Binao Electric, has been deeply rooted in the electrical industry for nearly two decades. We don't just manufacture components; we engineer reliable solutions.
YOSHINE's voltage protection relays are designed to adapt to the most demanding global environments. Key features of YOSHINE relays include:
High-Speed Microprocessor Core: Ensures instantaneous detection of over-voltage, under-voltage, and phase failures.
Smart Auto-Reset Functionality: Allows unattended appliances and industrial systems to resume operation safely once power stabilizes.
Compact & Modular Design: Easy to install on standard DIN rails, saving valuable space in electrical panels.
Customization Support: Backed by 20 years of R&D expertise, YOSHINE provides tailored OEM/ODM services to meet specific project requirements.
Investing in a high-quality voltage protection relay is one of the most effective ways to extend the lifespan of your electrical equipment and ensure operational safety. Whether you need standard protection for a commercial building or customized solutions for complex industrial automation, YOSHINE stands as your reliable partner.
